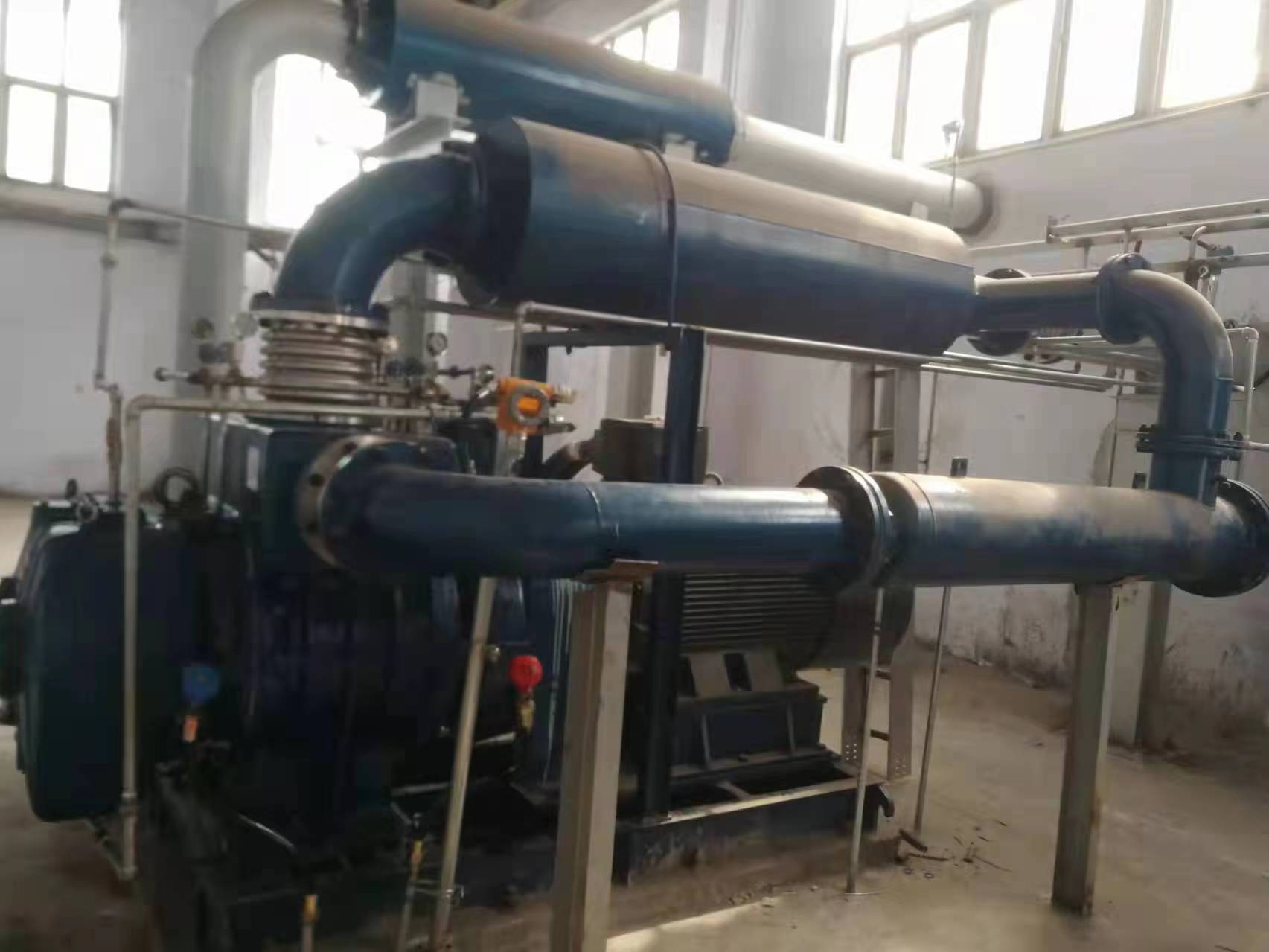

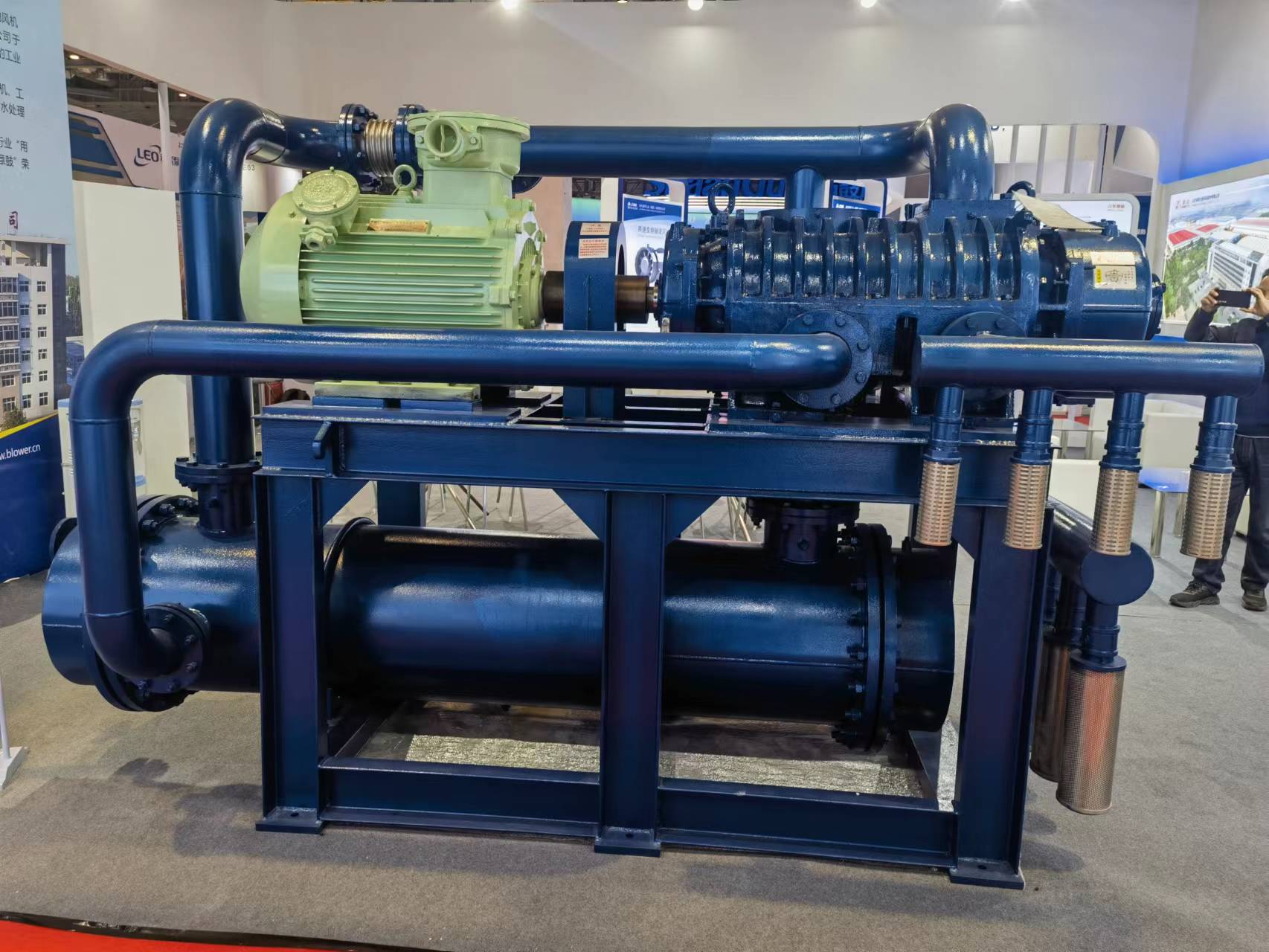

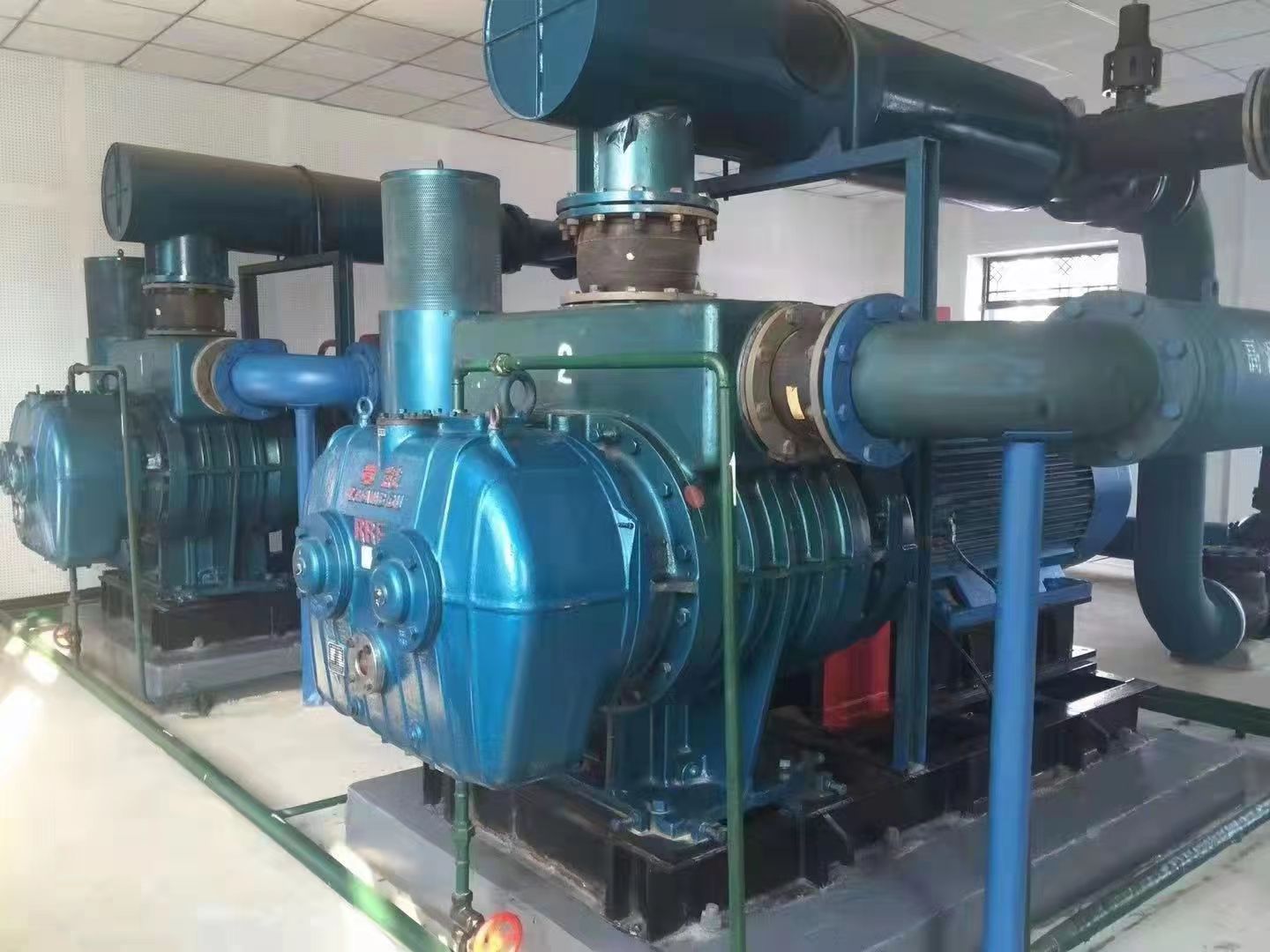

54001A ZR7-800W Vacuum Pump
Tag No.：54001A
Model：ZR7-800W
Name：Vacuum Pump
Specifications and technical parameters
|
Work conditions |
Conveying medium |
Gas: O2 - 14%; N2 - 86% |
|
Inlet flow (m³/h) |
45800 |
|
|
Intake air temperature (℃) |
35 |
|
|
Inlet pressure Kpa(G) |
-70 |
|
|
Outlet pressure Kpa(G) |
1 |
|
|
Boost (kPa) |
71 |
|
|
Blower performance |
Blower model |
TZR7-800W |
|
Inlet flow (m³/min) |
770 |
|
|
Blower speed (r/min) |
590 |
|
|
Transmission form |
Double shaft straight connection |
|
|
Boost (kPa) |
71 |
|
|
Cooling method |
Water cooling |
|
|
Sealed form |
Labyrinth seal |
|
|
Motor |
Model |
YXKK560-10 |
|
Power (KW) |
1000K |
|
|
Voltage value (V) |
6000 |
|
|
Protection class |
IP55 |
|
|
Insulation class |
F |
|
|
Frequency (HZ) |
50 |
|
|
Blower material |
Chassis |
HT250 |
|
Impeller |
HT250 |
|
|
Wall panel |
HT250 |
|
|
Tank |
HT250 |
|
|
Gear |
20CrMnTi |
|
|
Axis |
45# steel forging and tempering treatment |
|
|
Bearing |
2 discs NSK 2 discs FAG |
