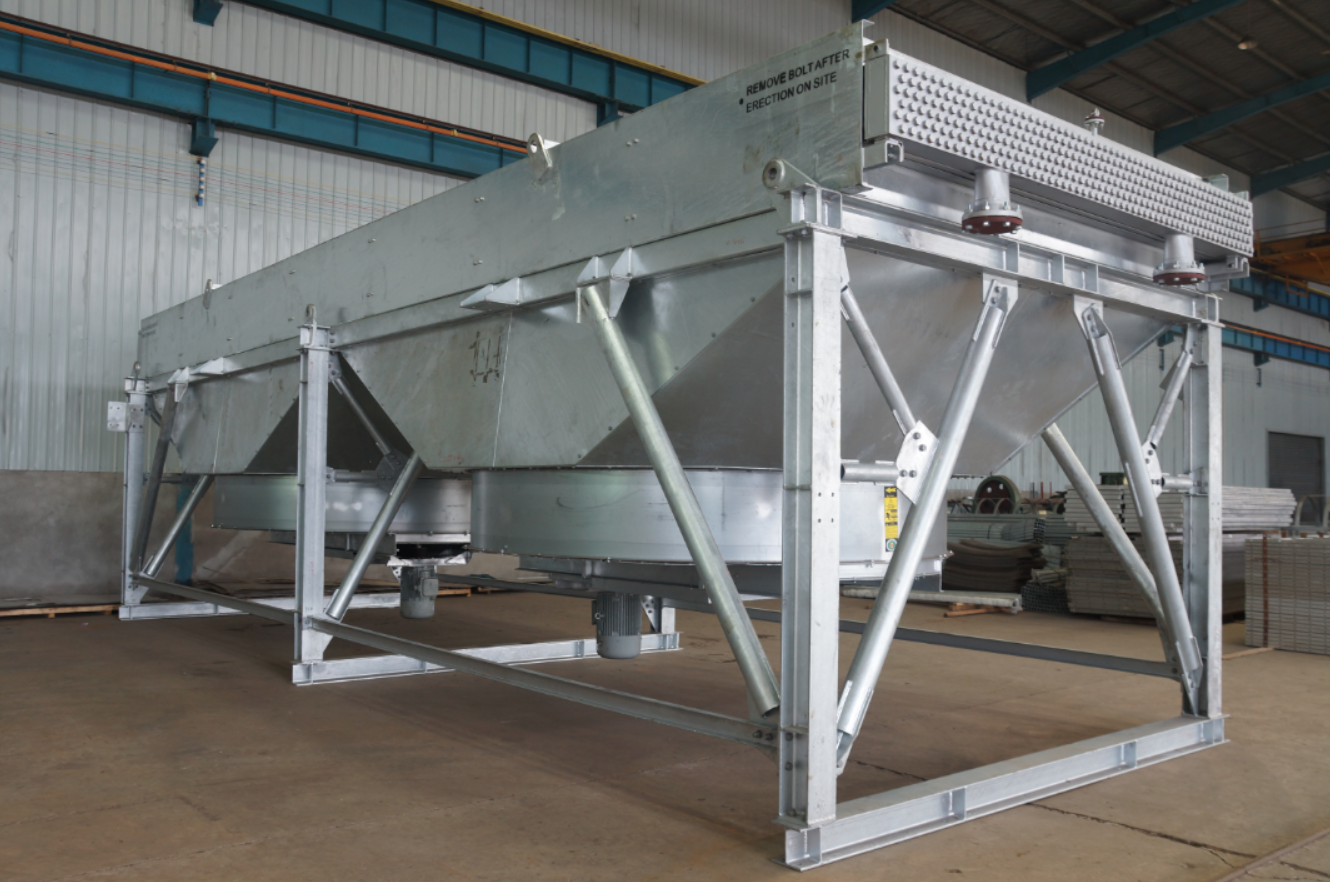

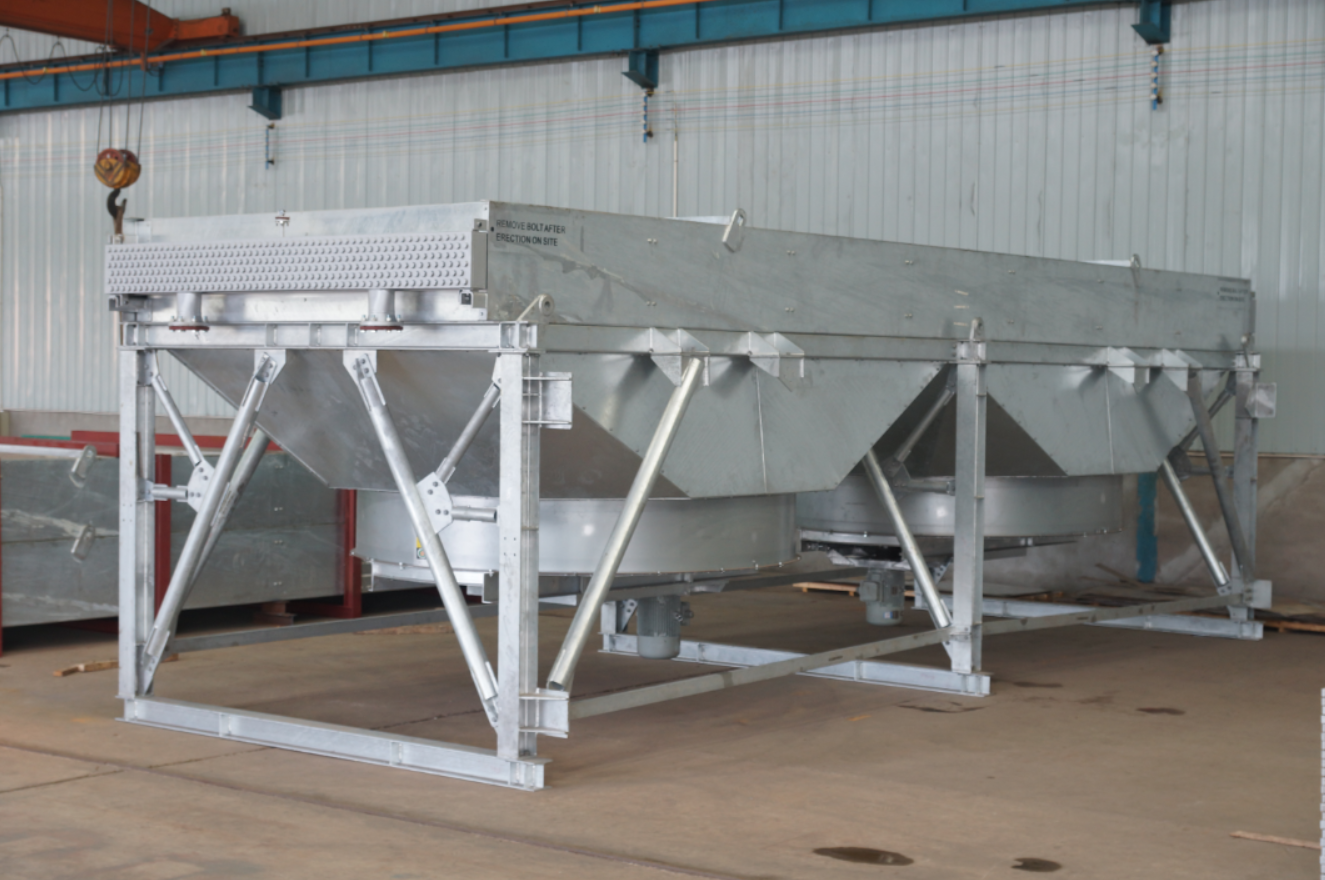

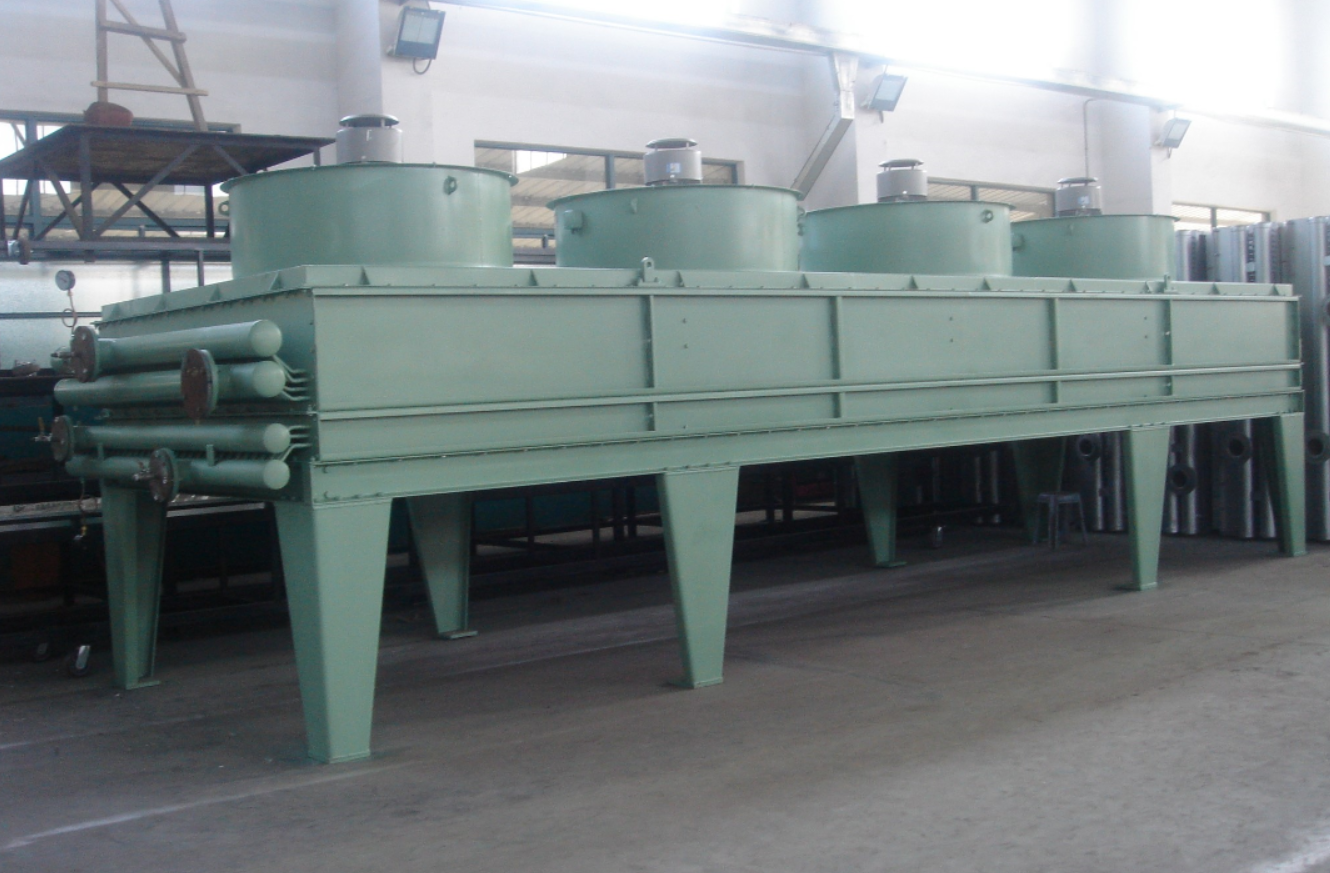

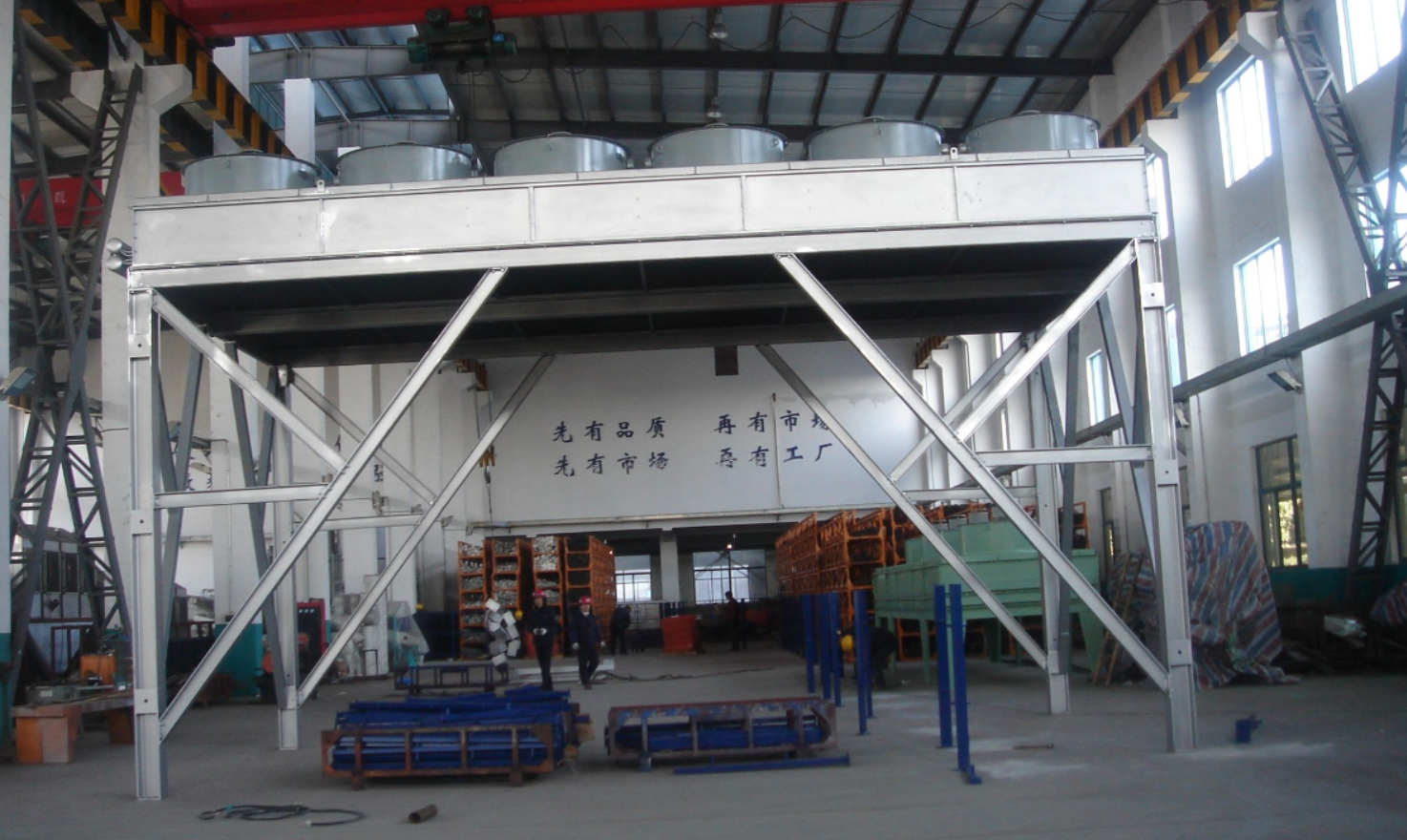

56301A 5043KW Air Cooler
Tag No.：56301A
Model：5043KW
Name：Air Cooler
Equipment parameters
|
Equipment name |
Air Cooler |
Quantity |
1 set |
|||||
|
Equipment model |
-- |
Air cooler form |
Blower type air cooler |
|||||
|
Dimensions (m) |
~ 7.66×17.5×4.5 (L×W×H) |
Work weight (kg) |
~8800/set, total 8 sets |
|||||
|
The parameters of the medium in the tube |
Calculate data |
|||||||
|
Fluid medium name |
50 % ethylene glycol in water |
Heat load (KW) |
5043 |
|||||
|
Total flow of fluid inlet (m³/h) |
500 |
Heat transfer coefficient (W/㎡-K) |
30.2 |
|||||
|
Temperature Inlet/Outlet (°C) |
45/35 |
Total area of base pipe (㎡) |
1305 |
|||||
|
Inlet pressure MPa (A) |
0.2 ~ 0.6 |
Total area of finned tubes (㎡) |
25234 |
|||||
|
Allow/design pressure drop kPa |
- /80 |
Surplus (%) |
6.6% |
|||||
|
Out-of-tube medium parameters |
||||||||
|
Media Name |
Air |
Air flow (kg/s) |
520.7 |
|||||
|
Temperature Inlet/Outlet (°C) |
28/37.7 |
Air pressure drop (Pa) |
155 |
|||||
|
Tube bundle and frame parameters |
||||||||
|
Tube bundle model |
SMLT-7.66*2.08*0.5-8 |
Tube case form |
Manifold |
|||||
|
Tube bundles ( sets ) |
8 |
Frame model |
GJP7.66×2.08 B-16/4F |
Tube box material |
304 |
|||
|
Number of heat exchange tubes of single set |
416 |
Closed quantity |
1 |
Design temperature °C |
80 |
|||
|
Number of tube passages |
4 |
Number of openings |
0 |
Design pressure MPa (g) |
0.66 |
|||
|
Number of tube rows |
8 |
Frame material |
16MnD(R) |
Inlet diameter/quantity |
DN80/12 |
|||
|
Tube layout |
Equilateral triangle |
Base tube material |
304 |
Outlet diameter/quantity |
DN80/12 |
|||
|
Finned tube length m |
7.66 |
Finned tube form |
Sleeve fin |
Flange standard |
GB/T 9119-2010 |
|||
|
Base pipe specifications |
Ø16×1 |
Fin material |
Aluminum |
Seal form |
PL RF |
|||
|
Blower and shutter parameters |
||||||||
|
Blower model |
JZL/KL1600 |
Motor power (KW) |
5.5 |
|||||
|
Number of blowers |
32 |
Motor protection grade |
IP55 |
|||||
|
Blade diameter m |
1.6 |
Motor explosion-proof rating |
CT4 |
|||||
|
Noise dB (A) |
≤85 |
Number of power frequency motors/variable frequency motors |
16/16 |
|||||
|
Shutter model |
SC-7.66×2.08 |
Number of shutters |
8 |
|||||
