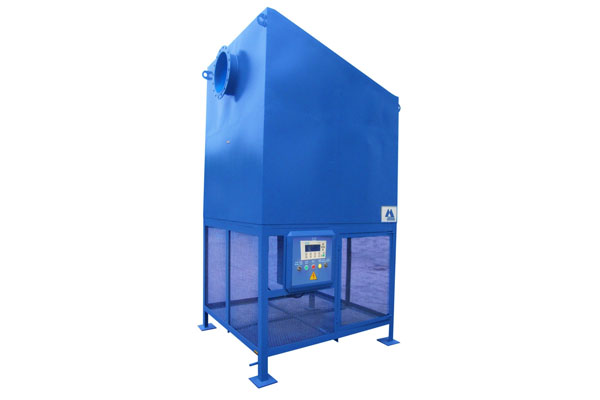

51012A ZKG-600 Self Cleaning Air Filter

51000 Series-Self Cleaning Air Filter

Tag No. :  51012A

Model: ZKG-600

Name: Self Cleaning Air Filter



Technical parameters of ZKG self-cleaning air filter

No.

Model

Item

ZKG-600

Remark

1

Rated flowrate, m³/h





2

Capacity, m³/h

~30000



3

Filtration efficiency per cartridge, m³/pc×number of CKAH32100 cartridges

20 m³x30pcs



4

Particle size, μm/% efficiency

≥2μm   99.99%;



5

Relative humidity

≤80%,(for rainy day, short term <100%=)



6

Ambient temperature

-25℃~+55℃



7

Initial resistance, Pa

≤150



8

Working resistance, Pa

150~650



9

Alarming resistance, Pa

1000

To be adjusted

10

Final resistance, Pa

1200

To be adjusted

11

Consumption of backflushing compressed air, m³/min

0.2



12

Pressure of backflushing compressed air, Mpa (G)

0.45~0.8



13

Power @ AC220V, W

200



14

Installation form

Outside, standing, one-floor



15

Overall dimension, LxWxH, mm

(Ref. drawing of profile and foundation)



16

Diameter of outlet pipe

(Ref. drawing of profile and foundation)



17

Reference height in the center of equipment outlet(mm)

(Ref. drawing of profile and foundation)

Made upon the request of user

18

Electrical safety

IP65, industrial use, outdoor



19

Anti-seism strength

VII



20

Noise

<75dBA



21

Safe degree of vacuum

-5Kpa



22

Self-cleaning method

Programmed/ differential pressure/ manual





For more details, please feel free to contact us by email sinocom6@163.com
