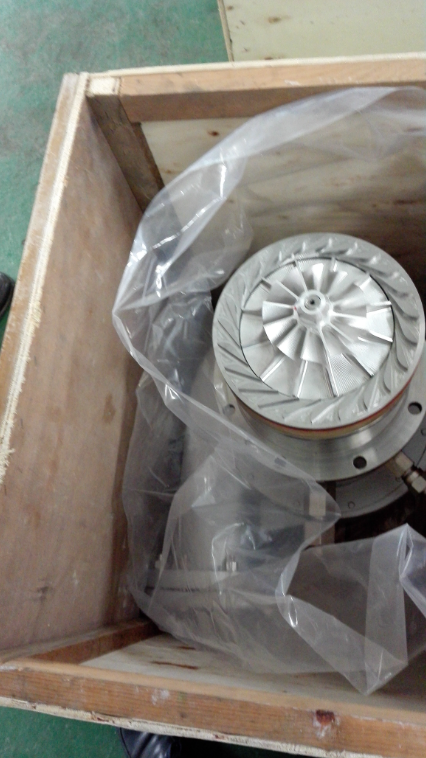

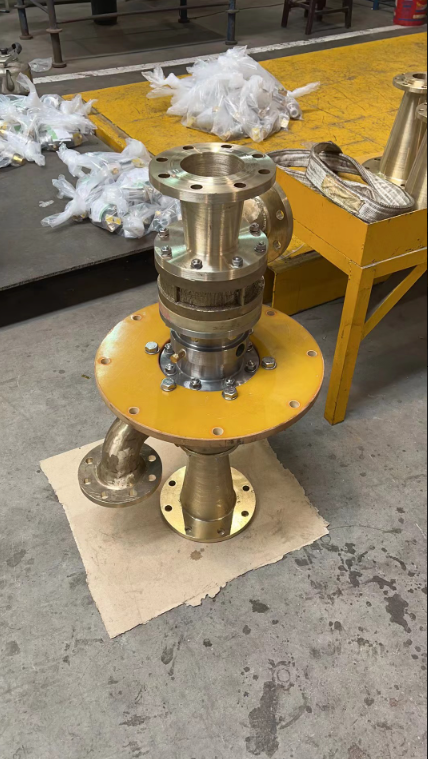

57202A BT125 Air Bearing Turbine Expander
Tag No.：57202A
Model：BT125
Name：Air Bearing Turbine Expander
Second stage: expander end BT125 non-standard series (working wheel 120), blower end 150 non-standard series
|
Expander end |
Blower end |
Remark |
|
|
Medium |
Nitrogen |
Air |
|
|
Flow Nm³/h |
4500 |
~1860 |
|
|
Inlet pressure MPa A |
0.9 |
0.1 |
|
|
Outlet pressure MPa A |
0.2 |
0.165 |
|
|
Inlet temperature K |
127.6 |
303 |
|
|
Liquid volume after expansion % |
0 |
||
|
Outlet temperature K |
89.2 |
374 |
|
|
Efficiency % |
80 |
60 |
|
|
Rotating speed |
304 00 |
||
|
Inlet and outlet |
DN 100 /DN 150 |
DN 200 /DN 200 |
|
|
Braking power KW |
53 |
52.5 |
|
Instrument gas:
1. Bearing gas medium dry air, pressure ≥ 0.55MPa (G), flow ~ 35Nm³/h ;
2. Sealed gas medium air, pressure ~ 0.33MPa (G), flow ~ 10Nm³/ h；
