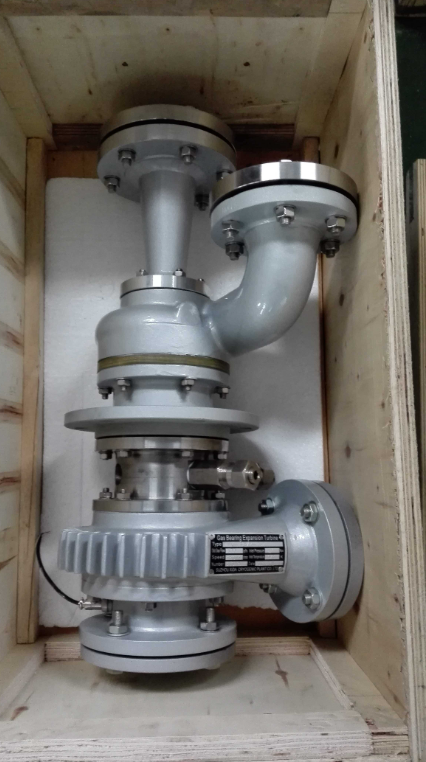

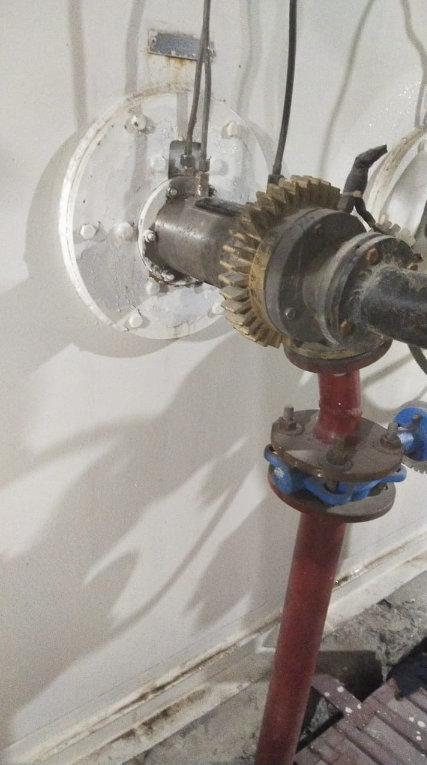

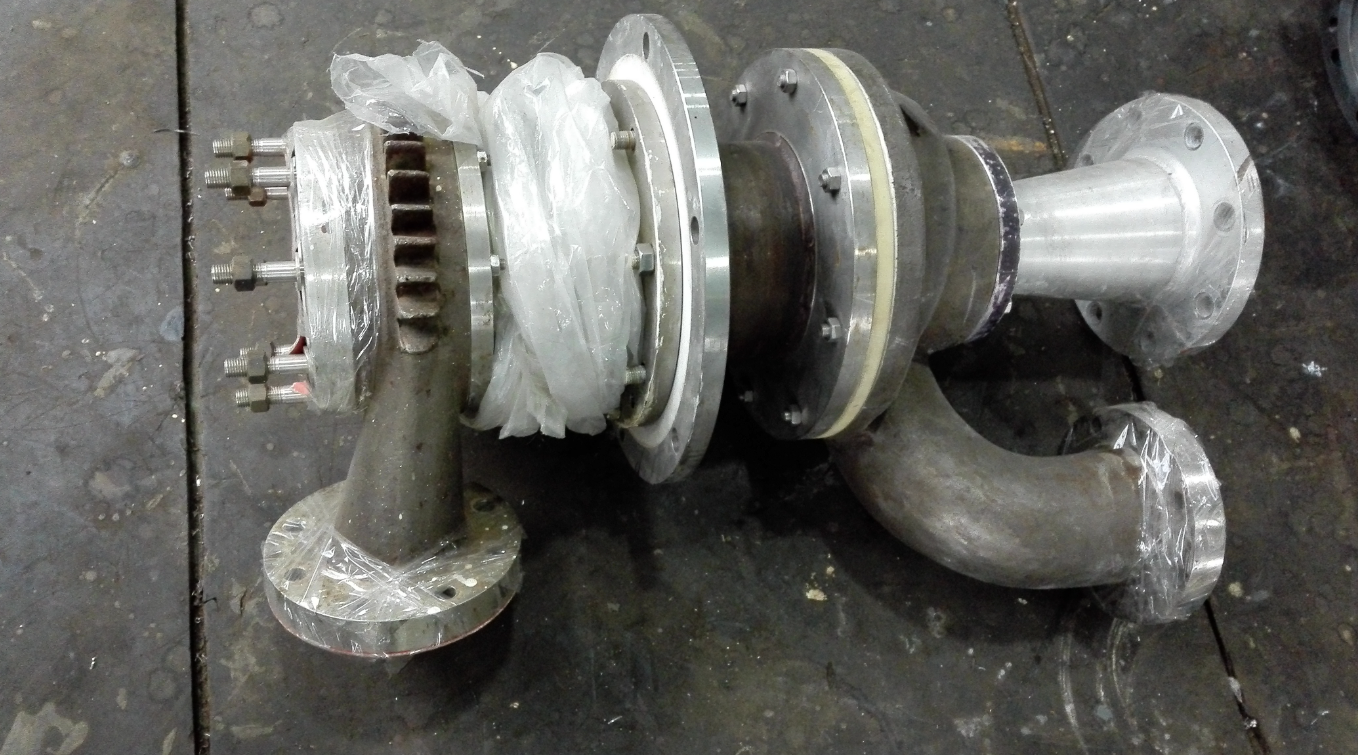

57201A BT80 Air Bearing Turbine Expander
Tag No.：57201A
Model：BT80
Name：Air Bearing Turbine Expander
First stage: expander end BT80 non-standard series (working wheel 70), blower end BT80 non-standard series
|
Expander end |
Blower end |
Remark |
|
|
Medium |
Nitrogen |
Air |
|
|
Flow Nm³/h |
4500 |
~1170 |
|
|
Inlet pressure MPa A |
2.1 |
0.1 |
|
|
Outlet pressure MPa A |
0.9 |
0.17 |
|
|
Inlet temperature K |
157 |
303 |
|
|
Liquid volume after expansion % |
0 |
||
|
Outlet temperature K |
127.5 |
386 |
|
|
Efficiency % |
78 |
60 |
|
|
Rotating speed |
443 00 |
||
|
inlet and outlet |
DN 65 /DN 100 |
DN 125 /DN 125 |
|
|
Braking power KW |
38.2 |
37.8 |
|
Instrument gas:
Bearing gas medium dry air, pressure ≥ 0.55MPa (G), flow ~ 35Nm³/h ;
Sealed gas medium air, pressure ~ 1.2MPa (G), flow ~ 5Nm³/h；
For more details, please feel free to contact us by email to sinocom6@163.com
Key Words: Air Bearing Turbine Expander, Turbine Expander, Turbine Bearing
