56201A DN800*3482 Tube and Shell Exchanger

56200 Series-Shell and Tube Exchanger

Tag No.:56201A

Model:DN800*3482

Name:Tube and Shell Exchanger



Product details:

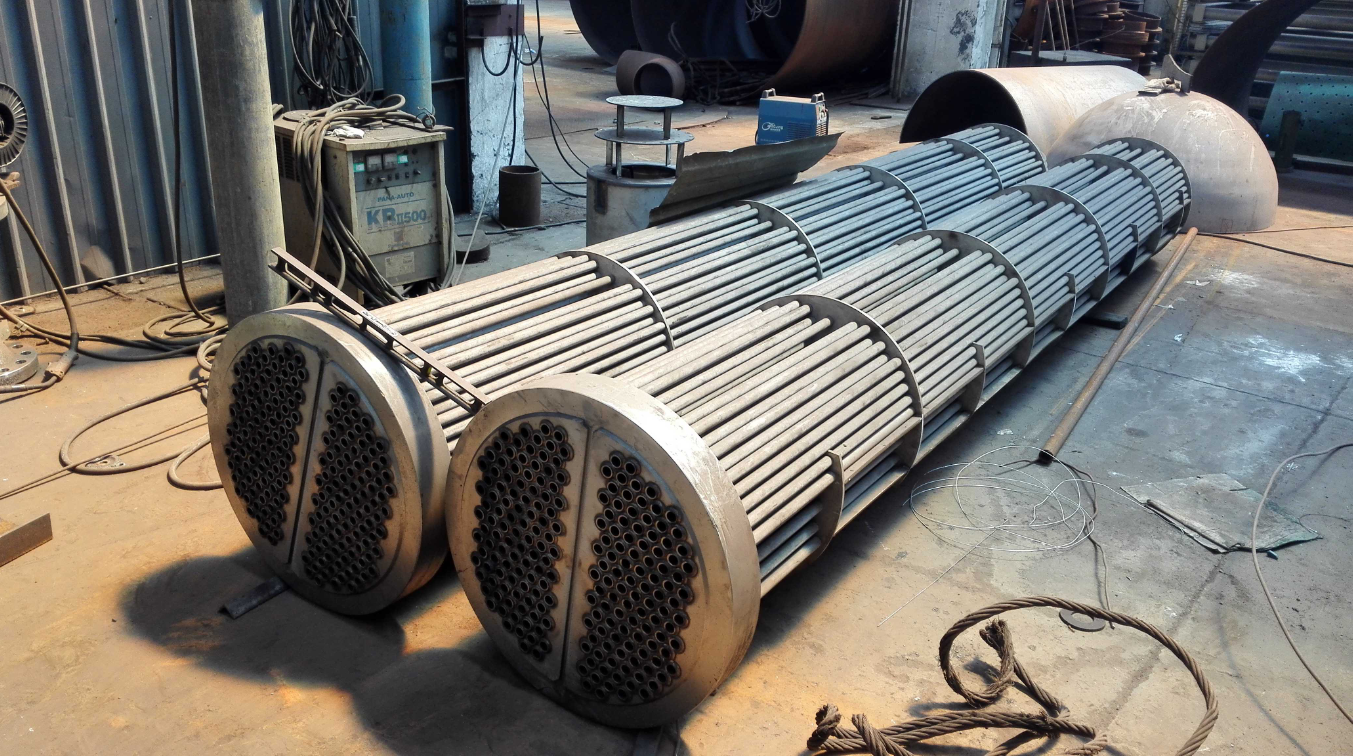

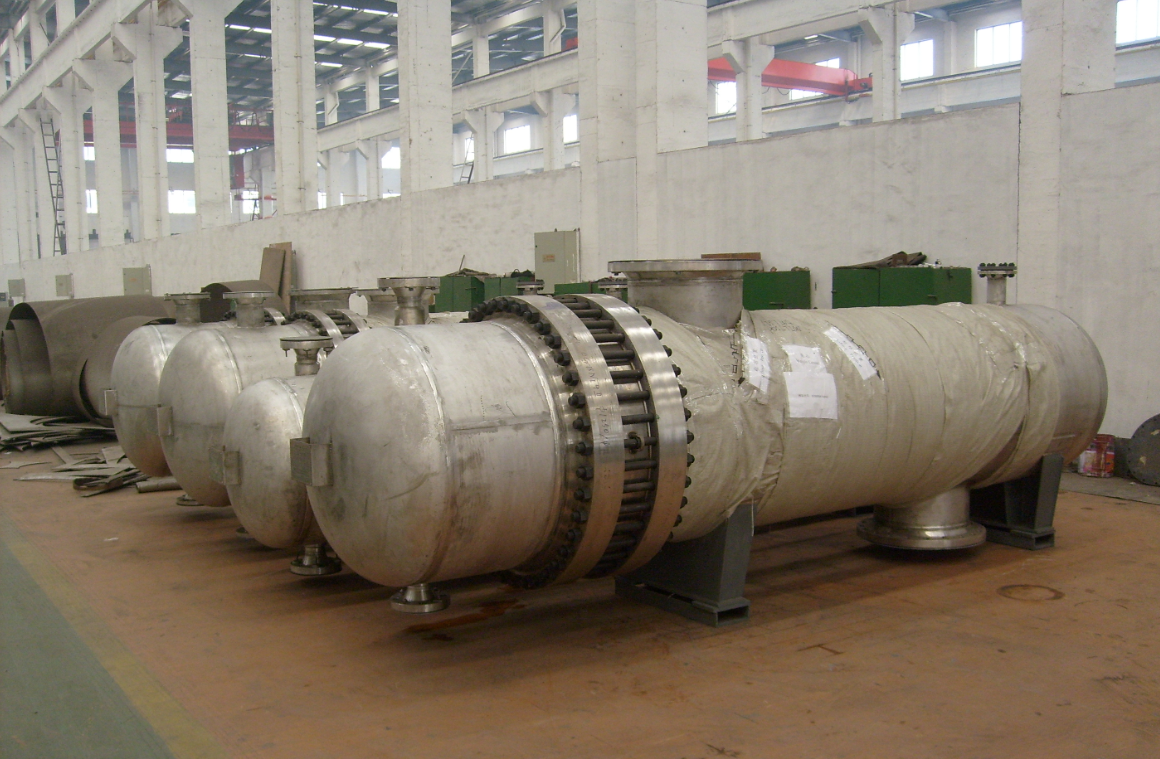

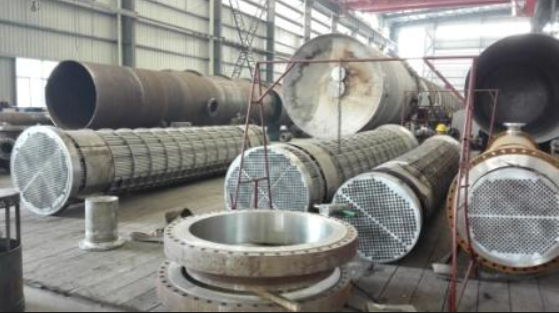

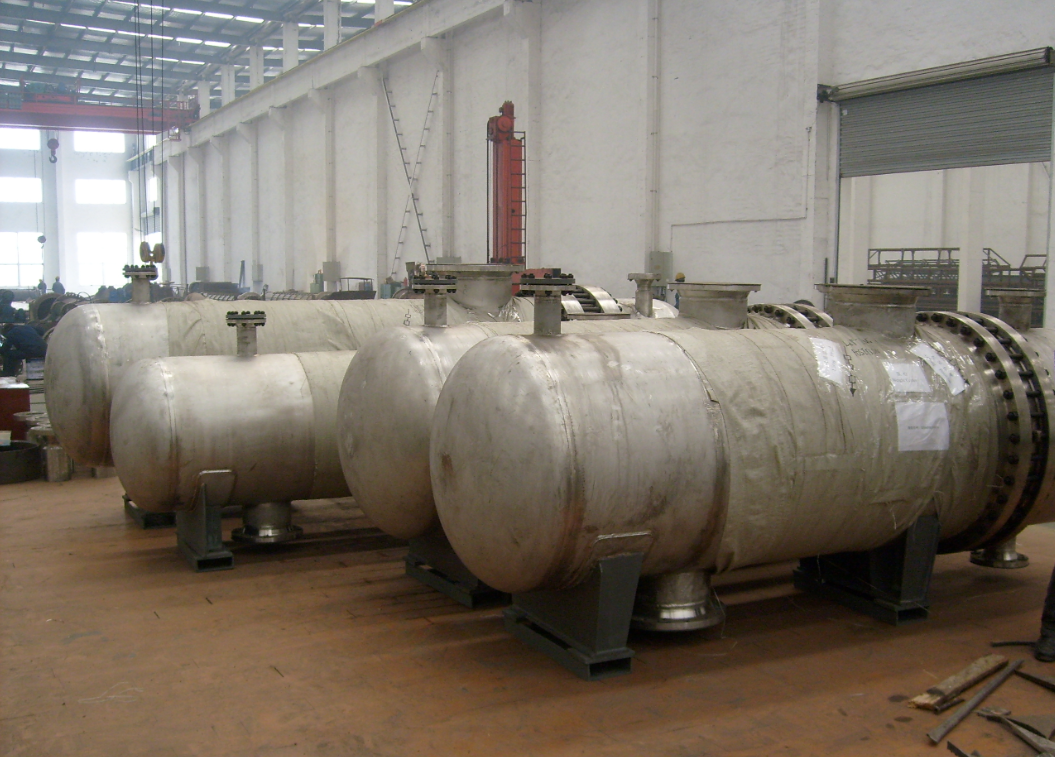

This shell-and-tube heat exchanger is a fixed tube-sheet heat exchanger, which is used for the after cooler of booster air compressor. Two streams exchange heat, the hot fluid is dry compressed air, and the cold fluid is industrial circulating cooling water. The air goes through the shell side, and the design pressure is 3.0MPa G. The water goes through the tube side. The shell material is SA516 Gr.70 (N), and the pipe material is SA-240M 2205.



For more details, please feel free to contact us by email to sinocom6@163.com
