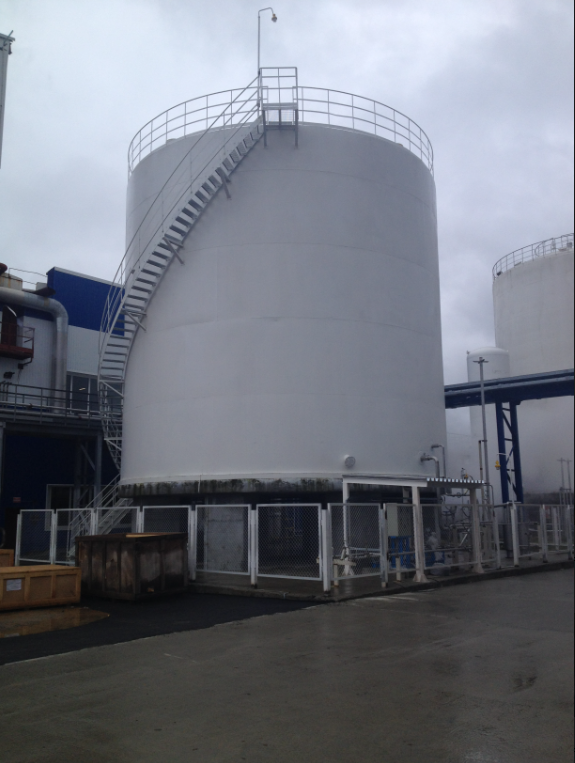

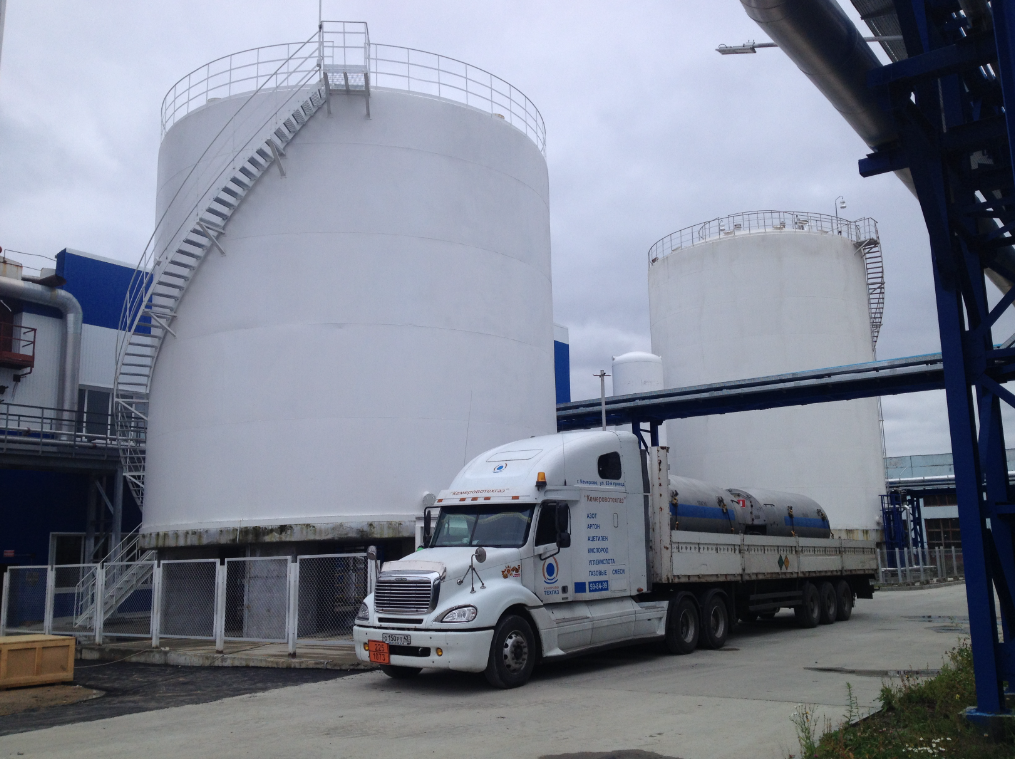

31301A DG500 500m³ Liquid Oxygen Normal Pressure Tank

31300 Series-Flat Bottom

Tag No.:31301A

Model:DG500

Name:500m³ Liquid Oxygen Normal Pressure Tank



500m³liquid oxygen normal pressure tank technical specifications:

Description

Inside vessel

Outside vessel

Note

Effective volume

500

/



Geometric volume

535

51Inter space

Filling rate 94%

Storage medium

LOX

perliteN2



Diametermm

Ф9000

Ф11200



Total heightmm

8922

12900

Exclude concrete foundation height

Main material

06Cr19Ni10

09MnNiDR



Design liquid levelmm

7860

/



Design temperature

196~+65

70



Work pressureKPa

20

-0.5~0.5



Design pressureKPa

25

-0.5~0.5



Pneumatic tight test

pressure

25

/



NDT test percentage

100% X-ray II degree

100Penetration test



Corrosion allowance

0

1.0



Daily vaporization

0.31%/dCalculation by LOX

Ambient temperature 20℃

Welding seam coefficient

According to API620-APP.Q



Equipment Net weightt

~125



Total weight with liquidt

~695LO2





For more details, please feel free to contact us by email to sinocom6@163.com



Key Words: Liquid Oxygen Normal Pressure Tank, Liquid Oxygen Storage Tank, Cryogenic Liquid Oxygen Storage Tank
