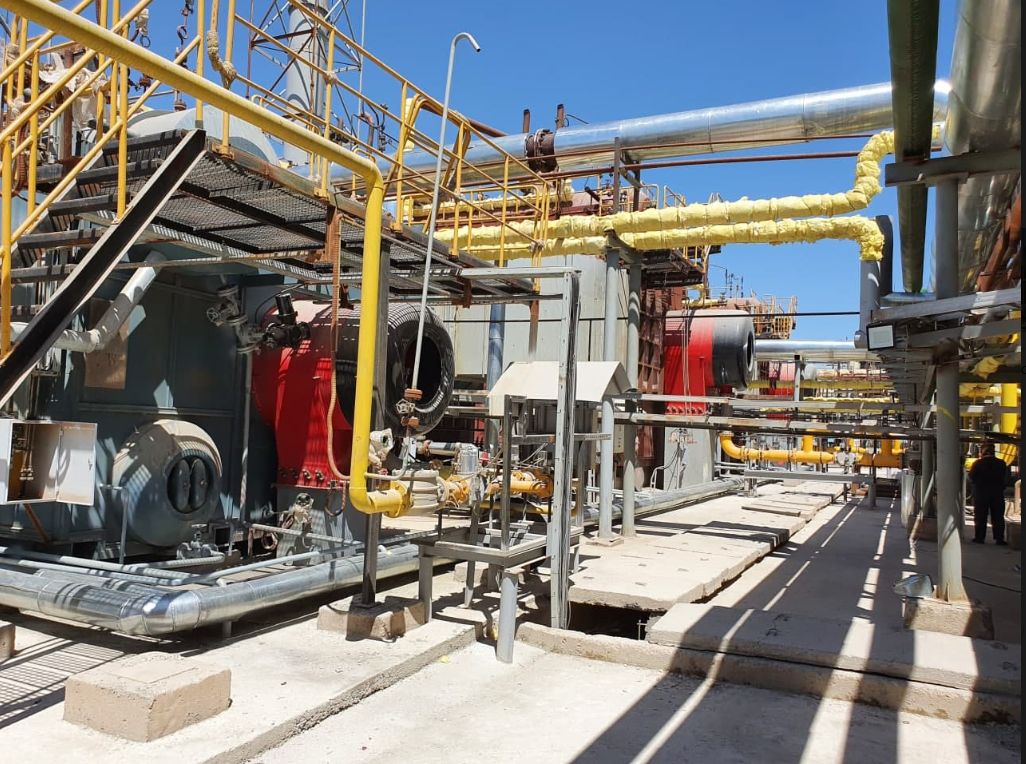

22001A SZS90-1.6/300-Q Steam Boiler
Tag No.:22001A
Model:SZS90-1.6/300-Q
Name:Steam Boiler
SZS90-1.6/300-Q type gas boiler consists of three parts: boiler body, economizer, condenser (or air preheater). Among them, the boiler body is delivered in bulk and assembled on site; the economizer and condenser (or air preheater) are delivered as a whole. Each boiler is equipped with a single split burner and a blower.
The main parameters of the boiler are shown in the table below:
Boiler model |
SZS90-1.6/300-Q |
|
Rated evaporation |
t/hr |
90 |
Rated steam pressure |
MPa |
1.6 |
Rated superheated steam temperature |
℃ |
300 |
Feed water temperature |
℃ |
104(20) |
Applicable fuel |
Natural gas |
|
Fuel consumption |
Nm³ /h |
7038 |
Design Thermal Efficiency |
% |
98.2 |
Boiler exhaust temperature |
℃ |
70 |
Excess Air Coefficient at Smoke Exhaust |
1.15 |
|
Allowable load variation range |
% |
70~100 |
Radiation heating area |
㎡ |
166.9 |
Radiation heating area |
㎡ |
725.2 |
Superheater heating area |
㎡ |
229 |
Economizer heating area |
㎡ |
1918 |
Condenser heating area |
1444.4 |
|
Boiler water volume |
m³ |
39.5 ( full water ) 30.8 |
Boiler body flue gas resistance |
Pa |
2850 |
Boiler body air resistance |
Pa |
3800 |
For more details, please feel free to contact us by email to sinocom6@163.com
