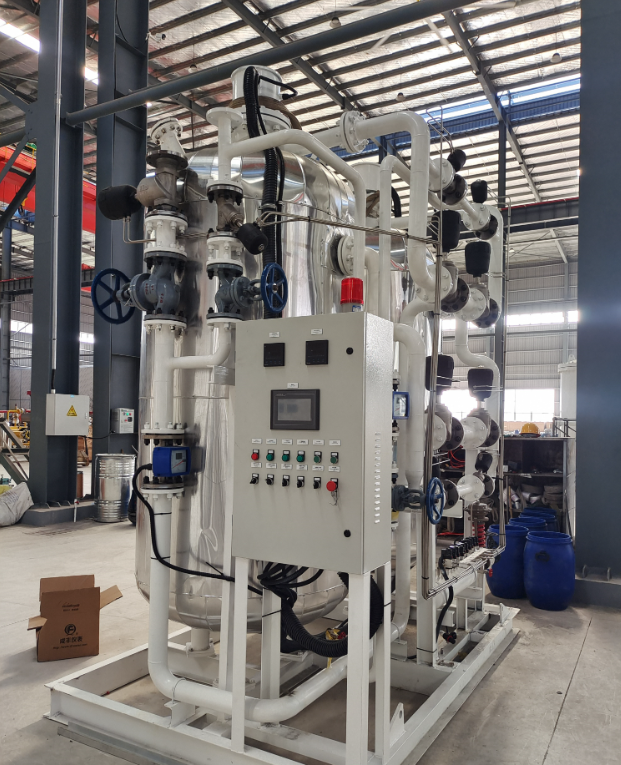

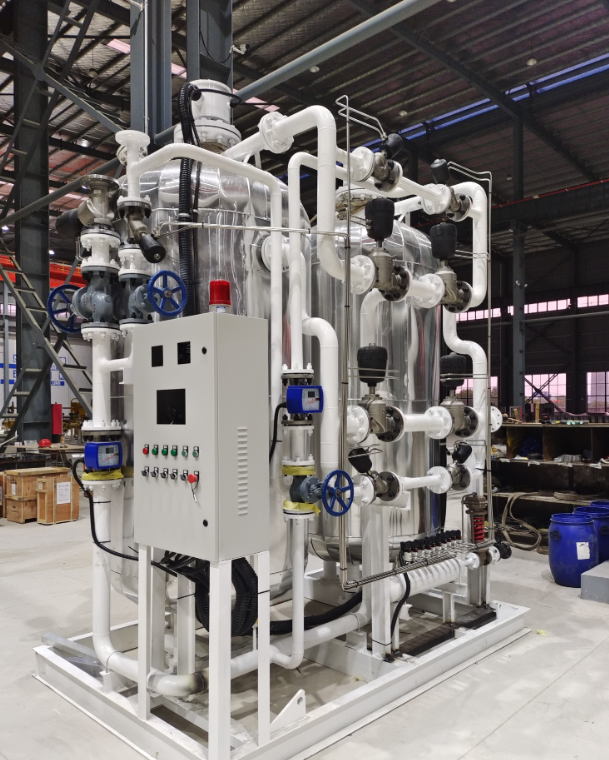

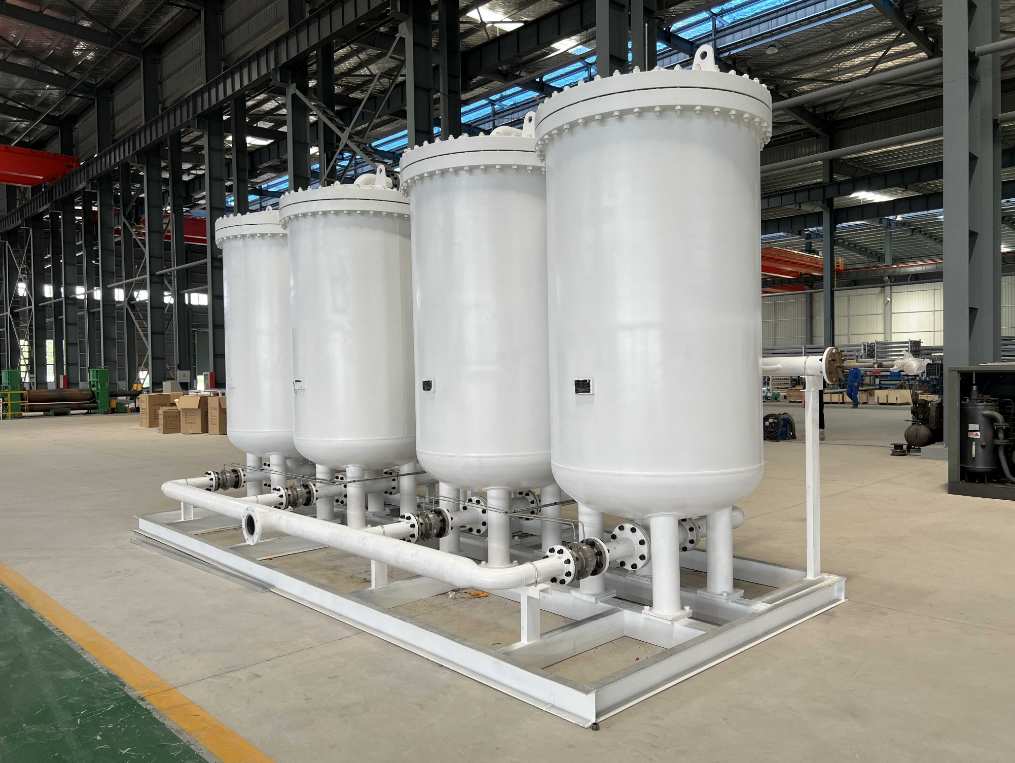

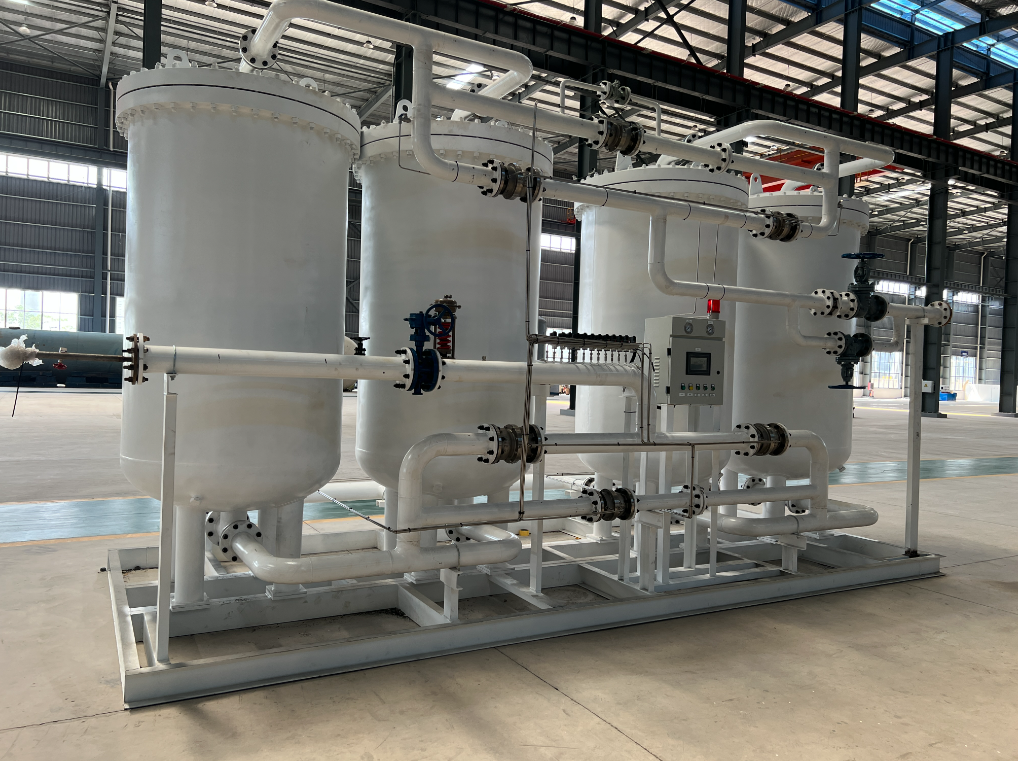

18015A PSAN-1250/5N/-60DP PSA Nitrogen Generator
Tag No.：18015A
Model：PSAN-1250/5N/-60DP
Name：PSA Nitrogen Generator
General performance and utilities consumption：
|
1 |
General performance |
|||
|
Description |
Output |
Purity |
Delivery Pressure |
|
|
Gas nitrogen |
1250Nm³/hr |
O2≤ 10ppm Dew point ≤-60°C CO2≤80ppm |
0.7MPa G |
|
|
Note: 1. The output flow Nm³ is same to input air flow Nm³ after air purifier. Normally Nm³ means volume under standard conditions (0 deg C, 0.1013 MPa A). If the input dry air flow after purifier is supplied by buyer in Sm³ (20 deg C, 0.1013 MPa A), the output shall be adjusted to Sm³ technically and accordingly. 2. The performance is based on design basis of clause 1 in this technical annex. 3. Standard industrial performance tolerance: Output: + 4% Purity: 0% |
||||
|
2 |
Electricity requirement (preliminary to adjust during detail design after contract) |
|||
|
SN |
Equipment |
Motor power/Shaft power, KW |
||
|
1 |
Self-cleaning air filter |
0.2 |
||
|
2 |
Main air compressor (to be confirmed by compressor manufacturer) |
740/640 |
||
|
3 |
Refrigeration dryer |
22/15 |
||
|
4 |
Nitrogen purifier |
136/100 |
||
|
5 |
Control system |
2 |
||
|
6 |
Nitrogen booster compressor |
22/16 |
||
|
7 |
Total installed power |
922.2 |
||
|
8 |
Total shaft power |
773.2 |
||
|
9 |
Standard industrial power consumption tolerance: + 4% The final power may be adjusted somehow during final detail design. |
|||
|
3 |
Recycle cooling water requirement (preliminary to adjust during detail design after contract) |
|||
|
SN |
Equipment |
Recycle quantity, T/hr |
||
|
1 |
Main air compressor |
85 |
||
|
2 |
Air dryer |
15 |
||
|
3 |
Nitrogen purifier |
10 |
||
|
4 |
Nitrogen booster compressor |
5 |
||
|
5 |
Total |
115 |
||
|
4 |
Instrument air |
|||
|
Flow |
~50Nm³/hr |
|||
|
Note: By plant self-supply, no need end user additional supply. |
||||
