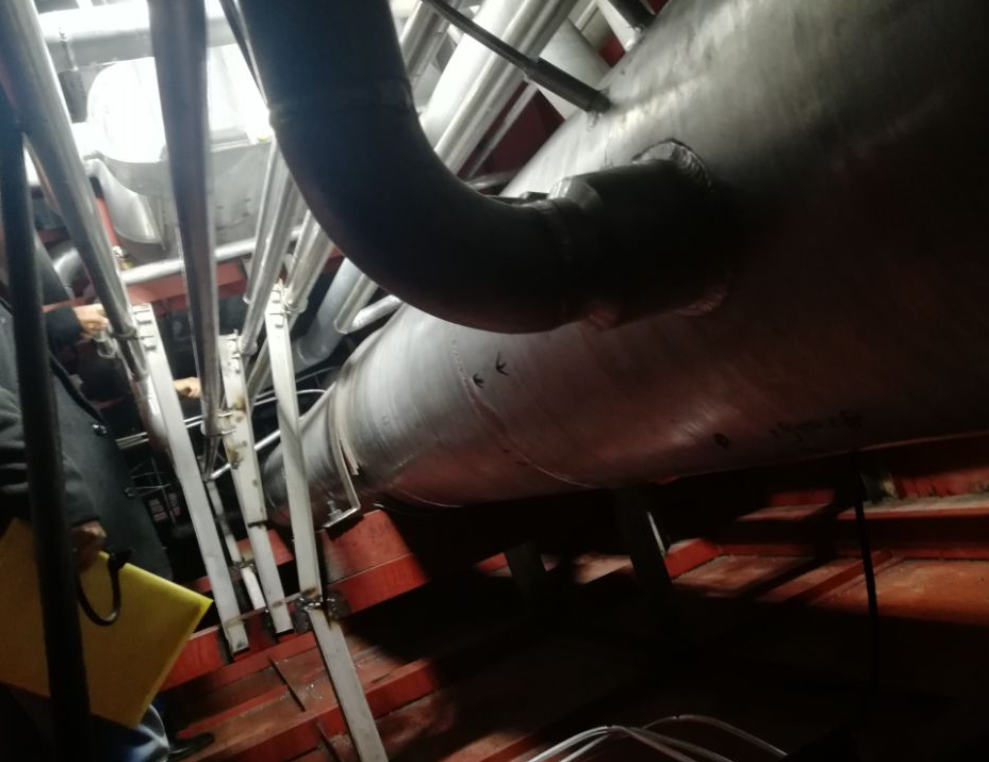

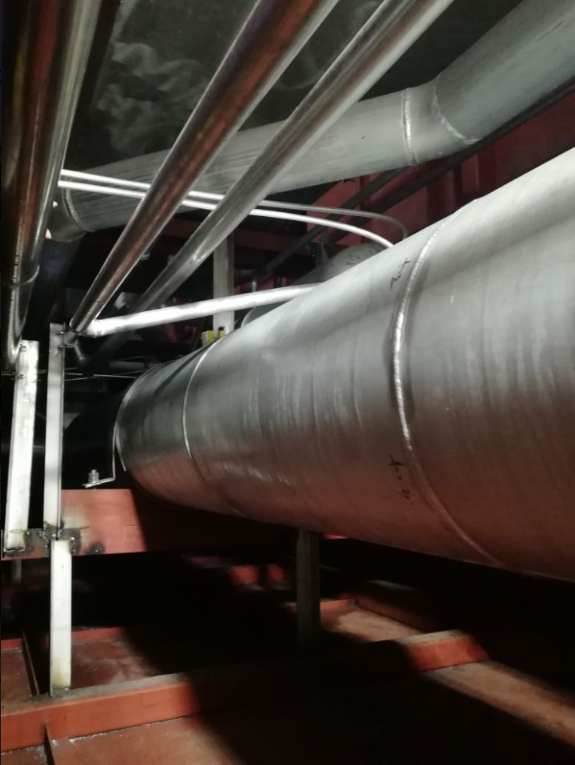

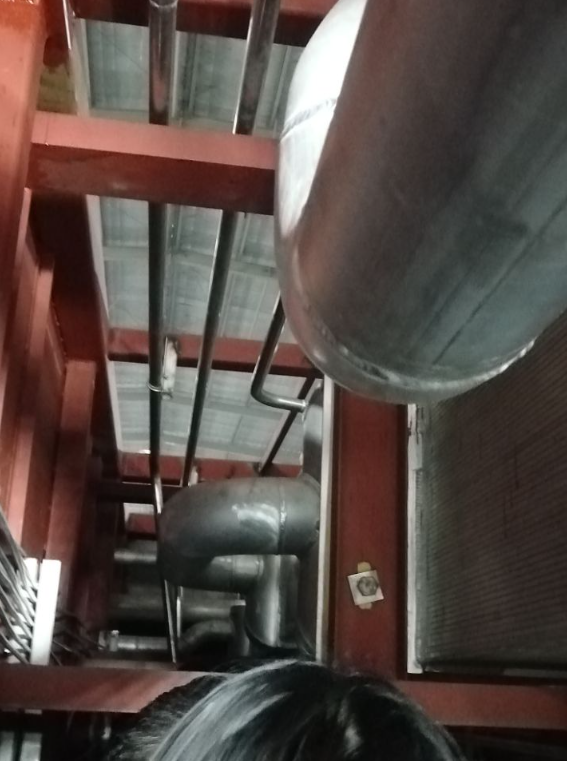

15011A KDON-370Y/370(12.68TPD LOX) Liquid Oxygen/Liquid Nitrogen Air Separation Plant

15000 Series-LOX/LIN Cryogenic Air Separation Plant

Tag No.:15011A

Model:KDON-370Y/370(12.68TPD LOX)

Name:Liquid Oxygen/Liquid Nitrogen Air Separation Plant



General performance and utilities consumption:

1

General performance



Description

Output

Purity

Pressure ex cold box

Liquid oxygen (LOX)

370Nm³/hr

(528Kg/hr, 463L/hr)

99.6% O2

0.05MPa G

Gas nitrogen (GAN)

370Nm³/hr

(462Kg/hr)

10 ppm O2

0.01MPa G

Note:

1. The output flow Nm³ is same to input air flow Nm³ after air purifier. Normally Nm³ means volume under standard conditions (0 deg C, 0.1013 MPa A). If the input dry air flow after purifier is supplied by buyer in Sm³ (20 deg C, 0.1013 MPa A), the output shall be adjusted to Sm³ technically and accordingly.

2. The performance is based on design basis of clause 1 in this technical annex.

3. Standard industrial performance tolerance: Output: + 4%      Purity: 0%

4. The output flow is based on flow ex cold box. The vaporization loss transfer pipe from cold box to tank, tank vaporization loss, filling vaporization loss should be all considered and calculated as ASP output according to China GB standard.

2

Electricity requirement



SN

Equipment

Installed power/Shaft power, KW

1

Self-cleaning air filter

0.2

2

Main air compressor

620/532

3

Air pre-cooler

30/26

4

Air purifier

80average 30

5

Turbine expander




Oil pump

5/3



Oil heater

5/0

6

Control system

5

7

Total installed power

755.2

8

Total shaft power

596.2

9

Standard industrial power consumption tolerance: +4%

3

Recycle cooling water requirement



SN

Equipment

Recycle quantity, T/hr

1

Main air compressor

60

2

Air pre-cooler

20

3

Turbine expander

10+20

4

Total

110

4

Instrument air




Flow

~100Nm³/hr

Note: To be supplied by user during start up and stop. ASP shall supply by itself during normal running.

5

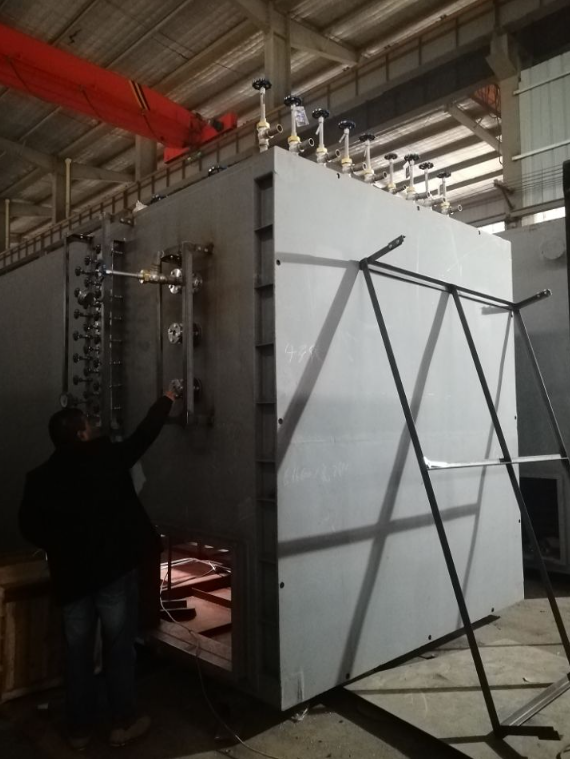

Cold box defrosting cycle

2 years



For more details, please feel free to contact us by email to sinocom6@163.com
