15001A KDON-1500Y/1500(51.41TPD LOX+45TPD GAN) Liquid Oxygen/Liquid Nitrogen Air Separation Plant
Tag No.：15001A
Model：KDON-1500Y/1500(51.41TPD LOX+45TPD GAN)
Name：Liquid Oxygen/Liquid Nitrogen Air Separation Plant
General performance and utilities consumption：
|
1 |
General performance |
|||
|
Description |
Output |
Purity |
Pressure ex cold box |
|
|
Mode 1 (Design mode, Max LOX) |
||||
|
Liquid oxygen (LOX) |
1500Nm³/hr (2142Kg/hr, 1876L/hr) |
99.6% O2 |
0.05MPa G |
|
|
Gas nitrogen (GAN) |
1500Nm³/hr (1876Kg/hr) |
10 ppm O2 |
0.01MPa G |
|
|
Mode 2: (Auxiliary mode, Max LIN) |
||||
|
Liquid oxygen (LOX) |
200Nm³/hr (285Kg/hr, 250L/hr) |
99.6% O2 |
0.05MPa G |
|
|
Liquid nitrogen (LIN) |
1450Nm³/hr (1813Kg/hr, 2240L/hr) |
10 ppm O2 |
0.01MPa G |
|
|
Note: 1. The output flow Nm³ is same to input air flow Nm³ after air purifier. Normally Nm³ means volume under standard conditions (0 °C, 0.1013 MPa A). If the input dry air flow after purifier is supplied by buyer in Sm³ (20 °C, 0.1013 MPa A), the output shall be adjusted to Sm³ technically and accordingly. 2. The performance is based on design basis of clause 1 in this technical annex. 3. Standard industrial performance tolerance: Output: + 4% Purity: 0% 4. The output flow is based on flow ex cold box. The vaporization loss transfer pipe from cold box to tank, tank vaporization loss, filling vaporization loss should be all considered and calculated as ASP output according to China GB standard. 5. Reserve LIN nozzle at cold box. |
||||
|
2 |
Electricity requirement |
|||
|
SN |
Equipment |
Installed power/Shaft power, KW |
||
|
1 |
Self-cleaning air filter |
0.2 |
||
|
2 |
Main air compressor |
1102/960 |
||
|
3 |
Booster air compressor |
1102/880 |
||
|
4 |
Air pre-cooler |
50/45 |
||
|
5 |
Air chiller |
45/35 |
||
|
6 |

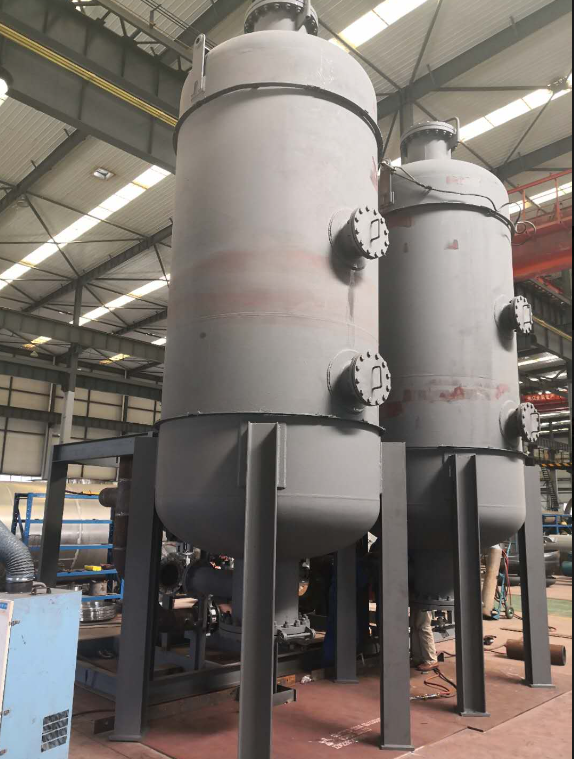

Air purifier |
150（average 50） |
||
|
7 |

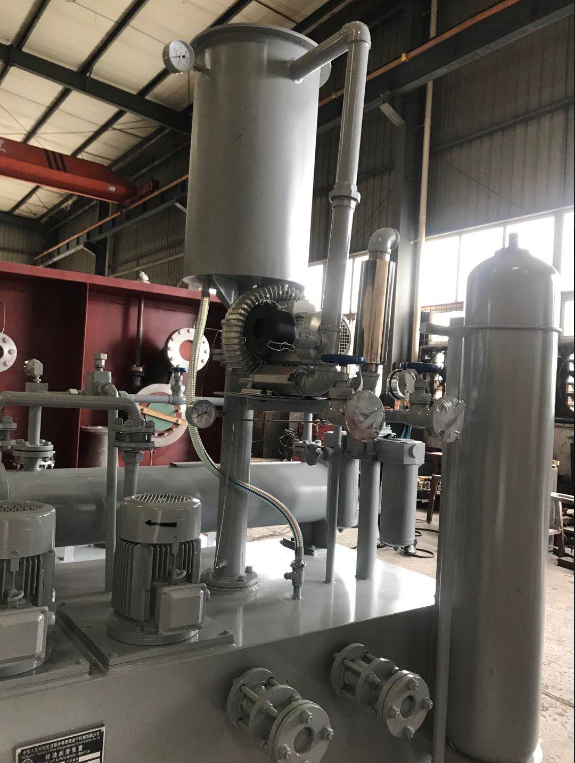

Turbine expander |
|||
|
Oil pump |
5/3 |
|||
|
Oil heater |
5/0 |
|||
|
8 |
Control system |
5 |
||
|
9 |
Total installed power |
2419.2 |
||
|
10 |
Total shaft power(tentative) |
1943.2 |
||
|
11 |
Standard industrial power consumption tolerance: +4% |
|||
|
3 |
Recycle cooling water requirement |
|||
|
SN |
Equipment |
Recycle quantity, T/hr |
||
|
1 |
Main air compressor |
120 |
||
|
2 |
Booster air compressor |
100 |
||
|
3 |
Air pre-cooler |
30 |
||
|
4 |
Air chiller |
15 |
||
|
5 |
Turbine expander |
50+30 |
||
|
6 |
Total |
345 |
||
|
4 |
Instrument air |
|||
|
Flow |
~200Nm³/hr |
|||
|
Note: To be supplied by user during start up and stop. ASP shall supply by itself during normal running. |
||||
|
5 |
Cold box defrosting cycle |
2 years |
||
