14010A KDONAr-2900Y/200Y/90Y Liquid Oxygen/Liquid Nitrogen/Liquid Argon Cryogenic Air Separation Plant
Tag No.: 14010A
Model: KDONAr-2900Y/200Y/90Y
Name: Liquid Oxygen/Liquid Nitrogen/Liquid Argon Cryogenic Air Separation Plant
Product parameters:
Description |
Output |
Purity |
Out cold box pressure |
Liquid oxygen(LOX) |
2900Nm³/hr (4141Kg/hr3628L/hr) |
99.6% O2 |
0.05MPa G |
Liquid nitrogen(LIN) |
200Nm³/hr (250Kg/hr, 308L/hr) |
5 ppm O2 |
0.45MPa G |
Liquid argon(LAr) |
90Nm³/hr (160Kg/hr112L/hr) |
≤5ppm O2 ≤5ppmN2 |
0.02MPa G |
Air flow: ~14800Nm³/hr
Installed power: ~3705.2KW
Shaft power consumption: ~3121.2KW
Circulating cooling water quantity: ~545m³/hr

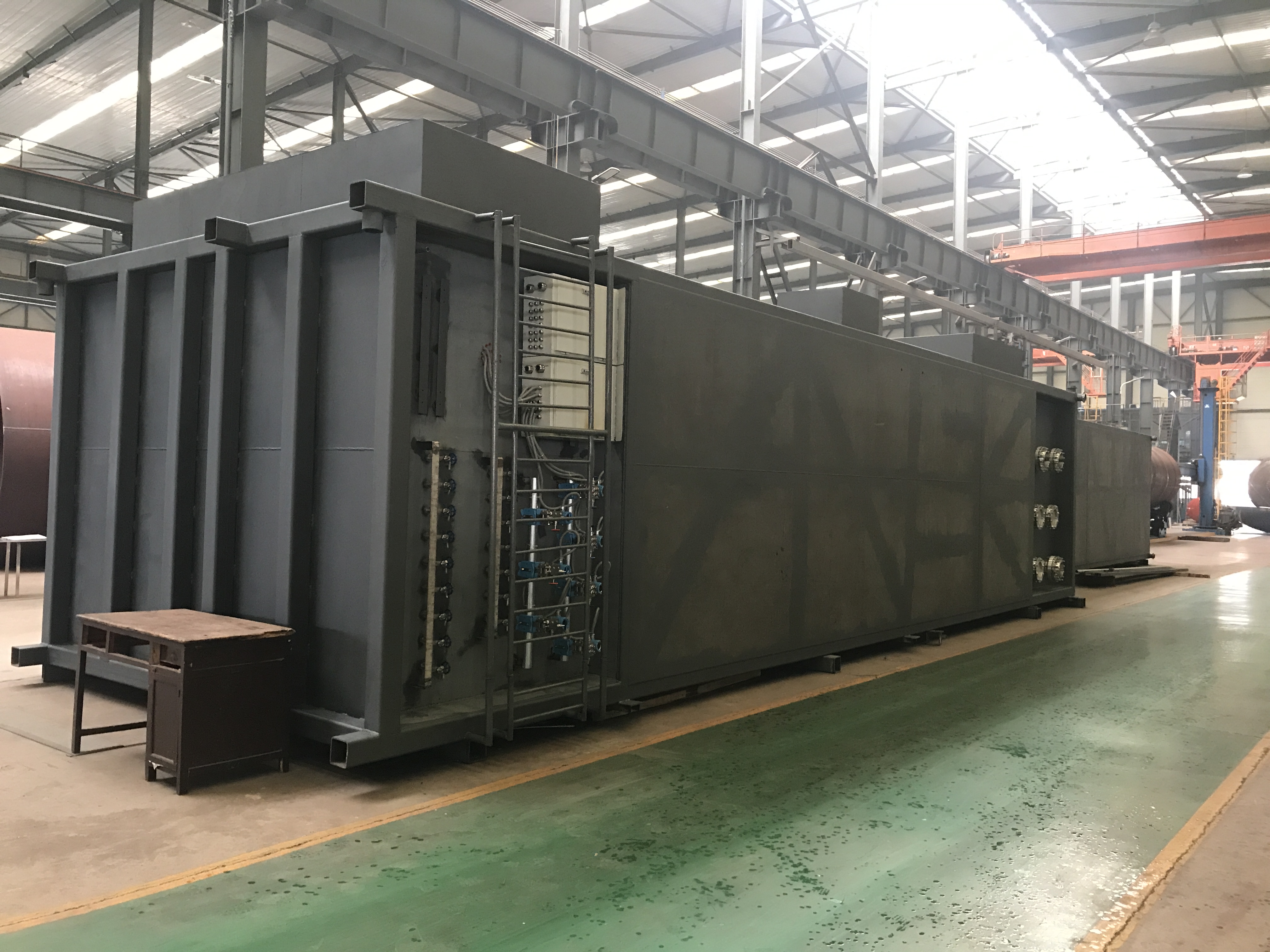

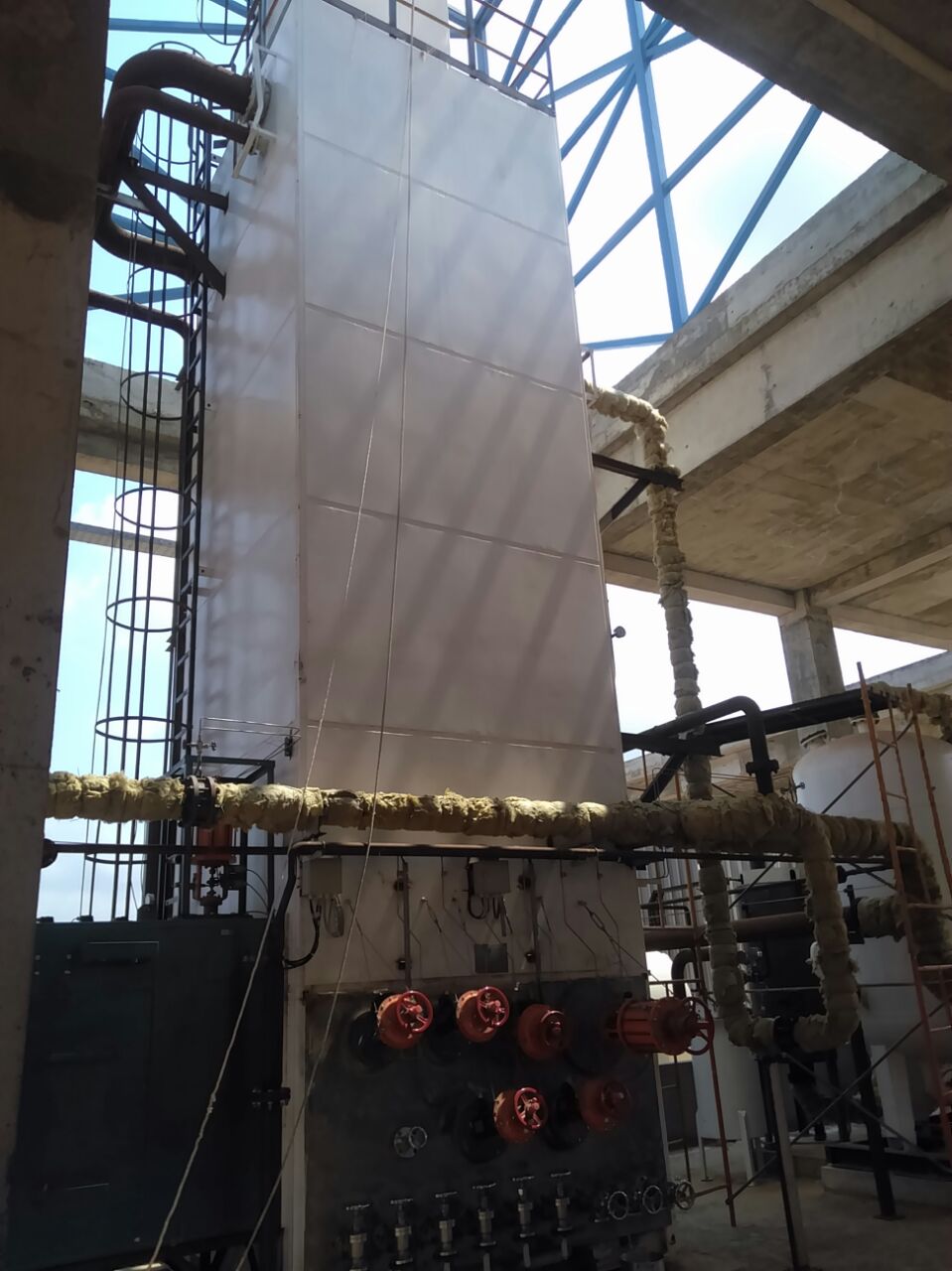

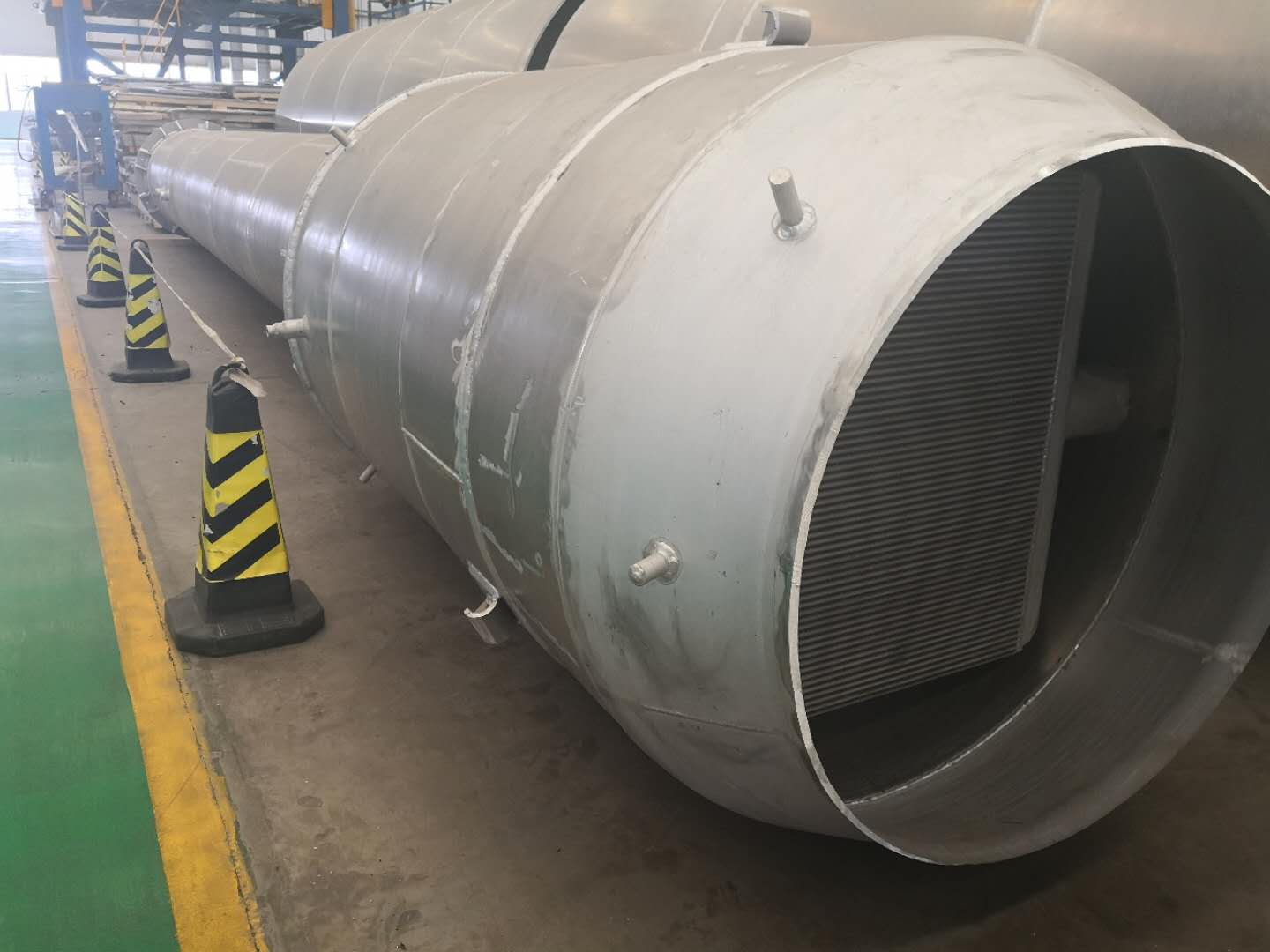

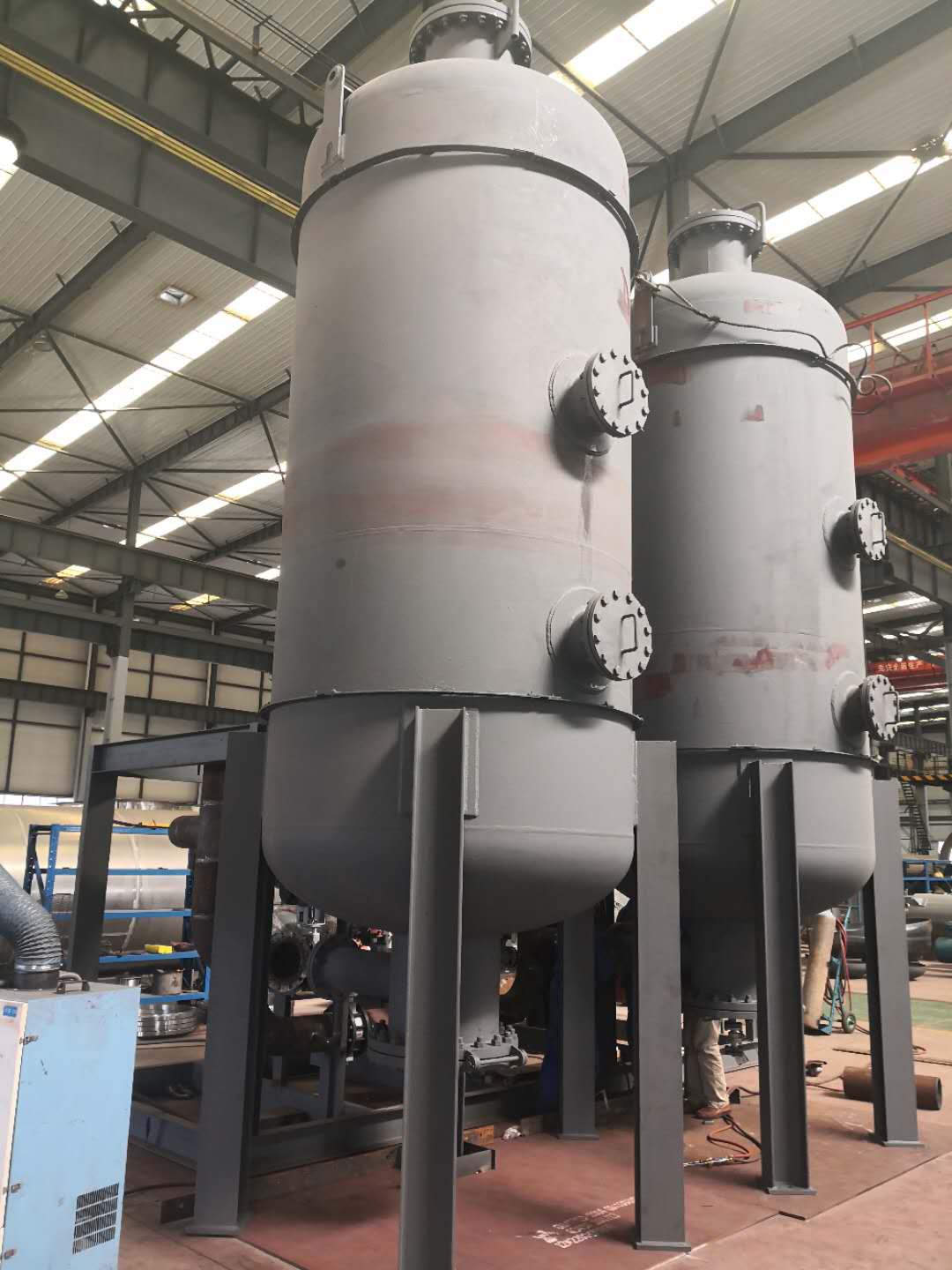

This air separation system is mainly composed of self-cleaning air filter, centrifugal raw material air compressor, centrifugal air booster, air pre-cooler, air purifier (13XAPGmolecular sieve), air separation cold box (sieve plate type rectification tower, structured packing type upper tower and argon tower, aluminum plate fin heat exchanger, etc.), turbo expander (oil bearing),PLC automatic control system, liquid oxygen storage tank, liquid nitrogen storage tank, liquid argon storage tank and other single equipment.
This all-liquid air separation equipment is mainly suitable for users of gas companies, providing liquid oxygen, liquid nitrogen and liquid argon supply within a certain range around.
For more information, please contact sinocom6@163.com
Key Words: Liquid Oxygen Cryogenic Air Separation Plant,Liquid Nitrogen Cryogenic Air Separation Plant,Liquid Argon Cryogenic Air Separation Plant
