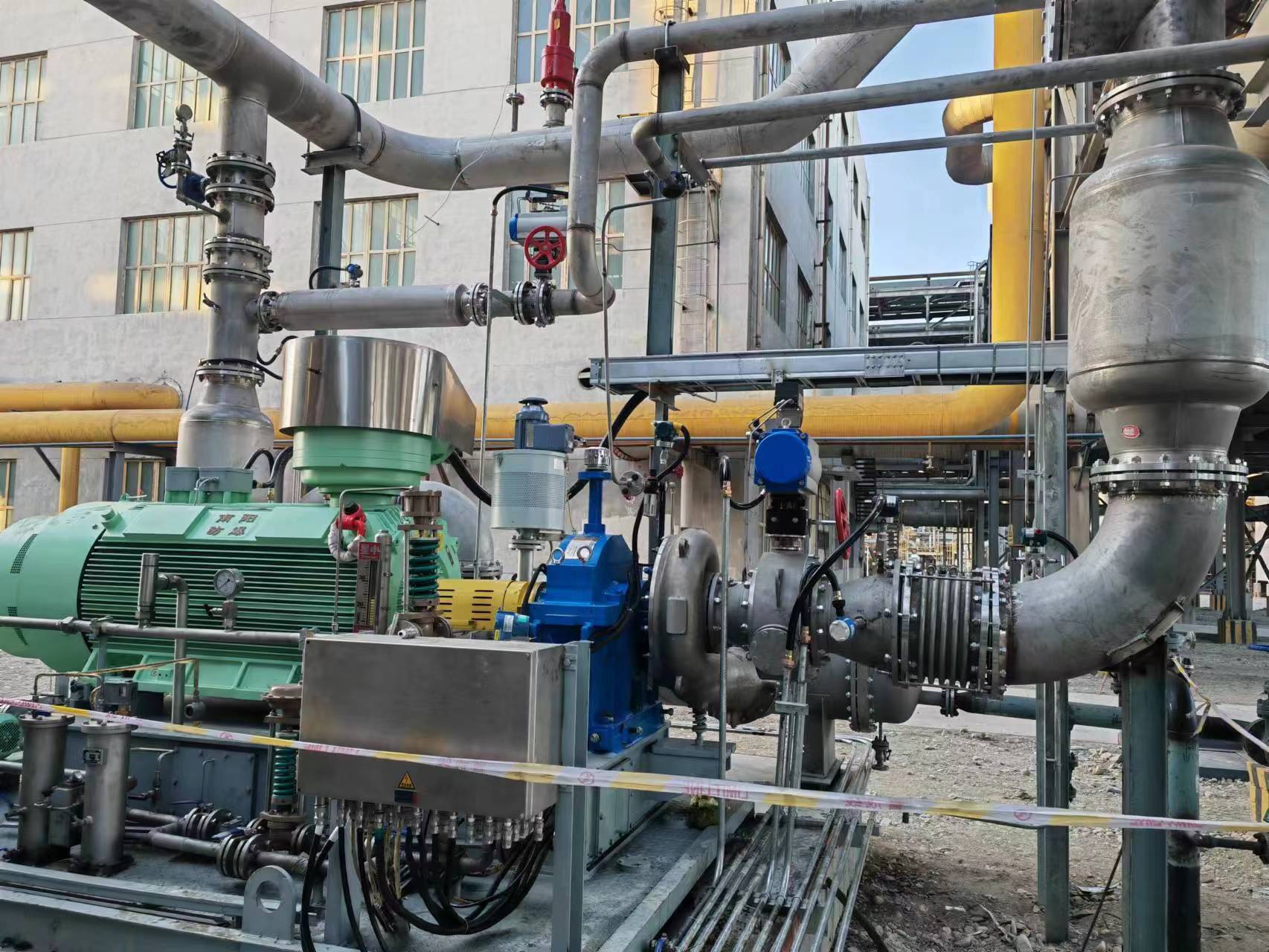

52308A 2SPCL408 Syngas Compressor
Tag No.：52308A
Model：2SPCL408
Name：Syngas Compressor
|
Operating conditions |
|
Working condition calculation |
|
Segment number or intermediate inbound/outbound logistics number |
1 stage |
1 stage |
|
Transporting gas (see page -) |
Syngas |
Syngas |
|
△ Gas properties |
|
|
|
Standard volumetric flow rate Nm3/h (1.013barA, 0 ℃ dry) |
82010 |
96380 |
|
Mass flow rate kg/h (wet/dry) |
|
|
|
Input conditions |
|
|
|
Pressure (MPa abs) |
14.86 |
14.86 |
|
Temperature (°C) |
26.9 |
26.9 |
|
Molecular weight |
8.85 |
8.85 |
|
Cp/Cv (K1) or (K average) |
1.397 |
1.397 |
|
Compressibility coefficient (Z1) or (Z-average) |
1.081 |
1.03 |
|
Inlet volume flow rate m3/h (wet/dry) |
649 |
779 |
|
Discharge condition |
|
|
|
Pressure (MPa abs) |
15.33 |
15.33 |
|
Temperature (°C) |
30.54 |
30.62 |
|
Cp/Cv (K2) or (K average) |
1.397 |
1.397 |
|
Compressibility coefficient (Z2) or (Z-average) |
1.081 |
1.03 |
|
Unit power (kW) |
|
|
|
Power at the driving machine (including all losses, gears, etc.) (kW) |
190 |
200 |
|
Speed (r/min) |
8317 |
8450 |
|
Variable energy head (kJ/kg) |
15.14 |
15.7 |
|
Variable efficiency (%) |
72.3 |
73.5 |
|
Guarantee point |
|
|
|
Expected operating point under each working condition (%) |
|
|
|
Expected number of performance curves |
4 |
|
