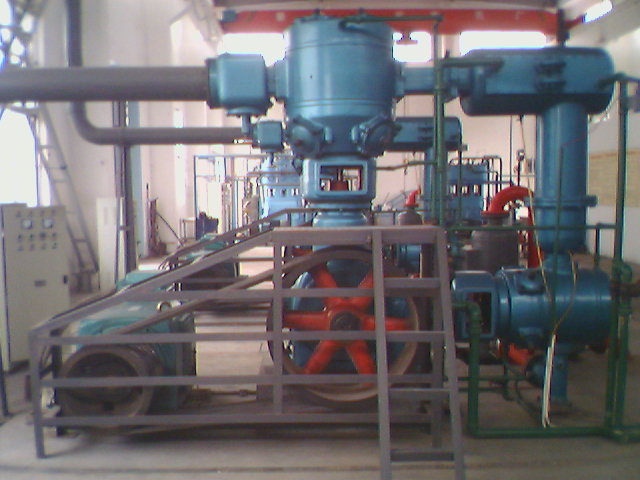

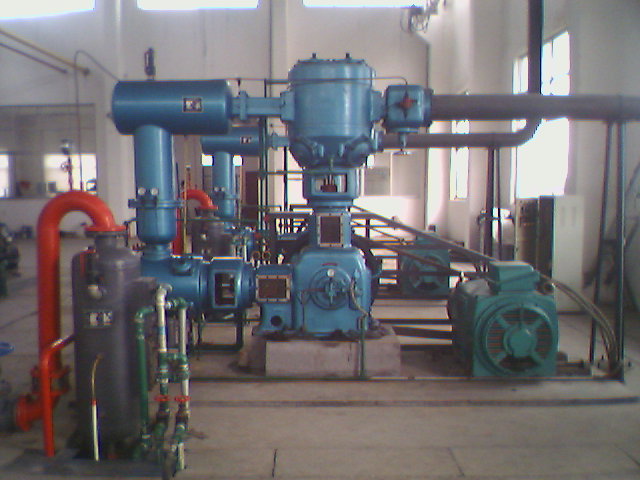

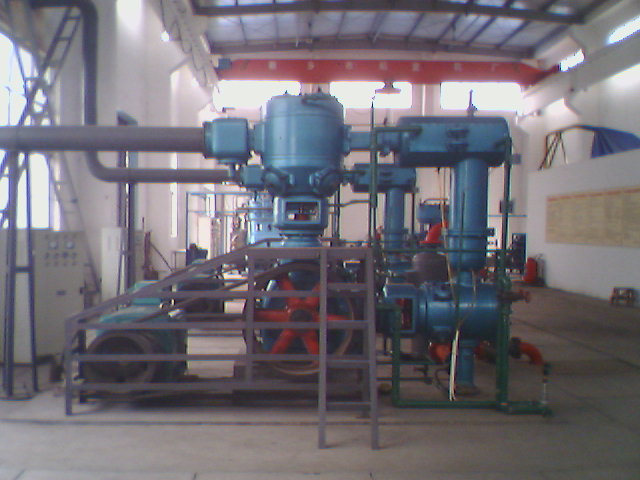

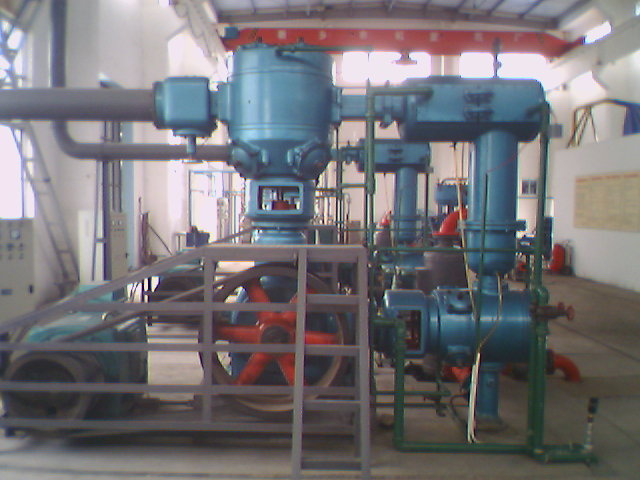

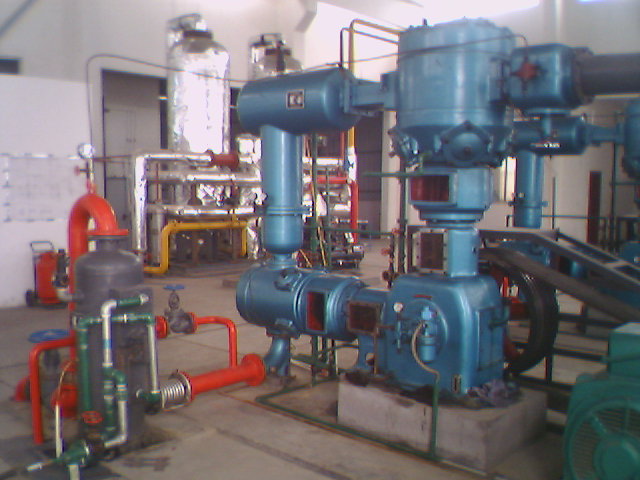

52193A 4M80-45.9/24-88.3 Reciprocating Gas Compressor

52100 Series-Reciprocating Compressor

 Tag No.:52193A

Model:4M80-45.9/24-88.3

Name:Reciprocating Gas Compressor



Model

4M80-45.9/24-88.3

(4 row 2 stage compression) hydrogen reciprocating compressor

Structural style

Symmetrical reciprocating balance type

Travel mm

320

Rotation r/min

333

Gas flow Nm3/h

59770(Design with a 3% increase in gas flow according to standard regulations to ensure no negative deviation of the compressor)

Inlet pressure MPaA

2.5/5.0

Outlet pressure MPaA

5.0/8.93

Inlet temperature

43/40

Discharge gas temperature

111/101

Cylinder diameter mm

420×2/315×2

Piston rod diameter mm

130

Lubrication method

Oil-free

Shaft power KW

3321

Motor model

Increased safety synchronous motor

Motor voltage KV

6KV

Motor power KW

3700

Area mm

~15000x14000

Total circulating water consumption

650t/h



For more information, please contact us by email sinocom6@163.com



Key Words: Reciprocating Gas Compressor, Hydrogen Reciprocating Gas Compressor, 4 Row 2 Stage Compression
