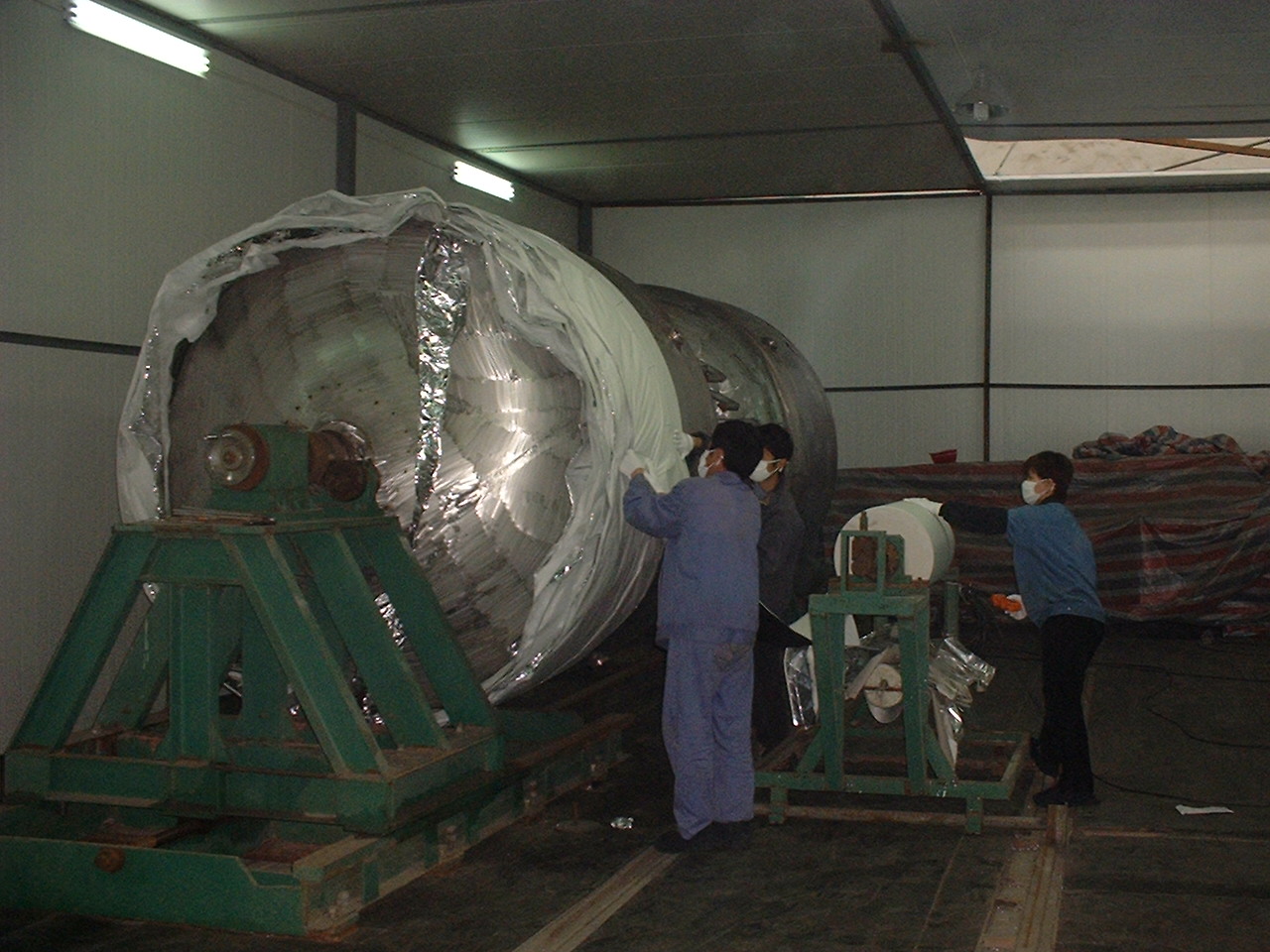

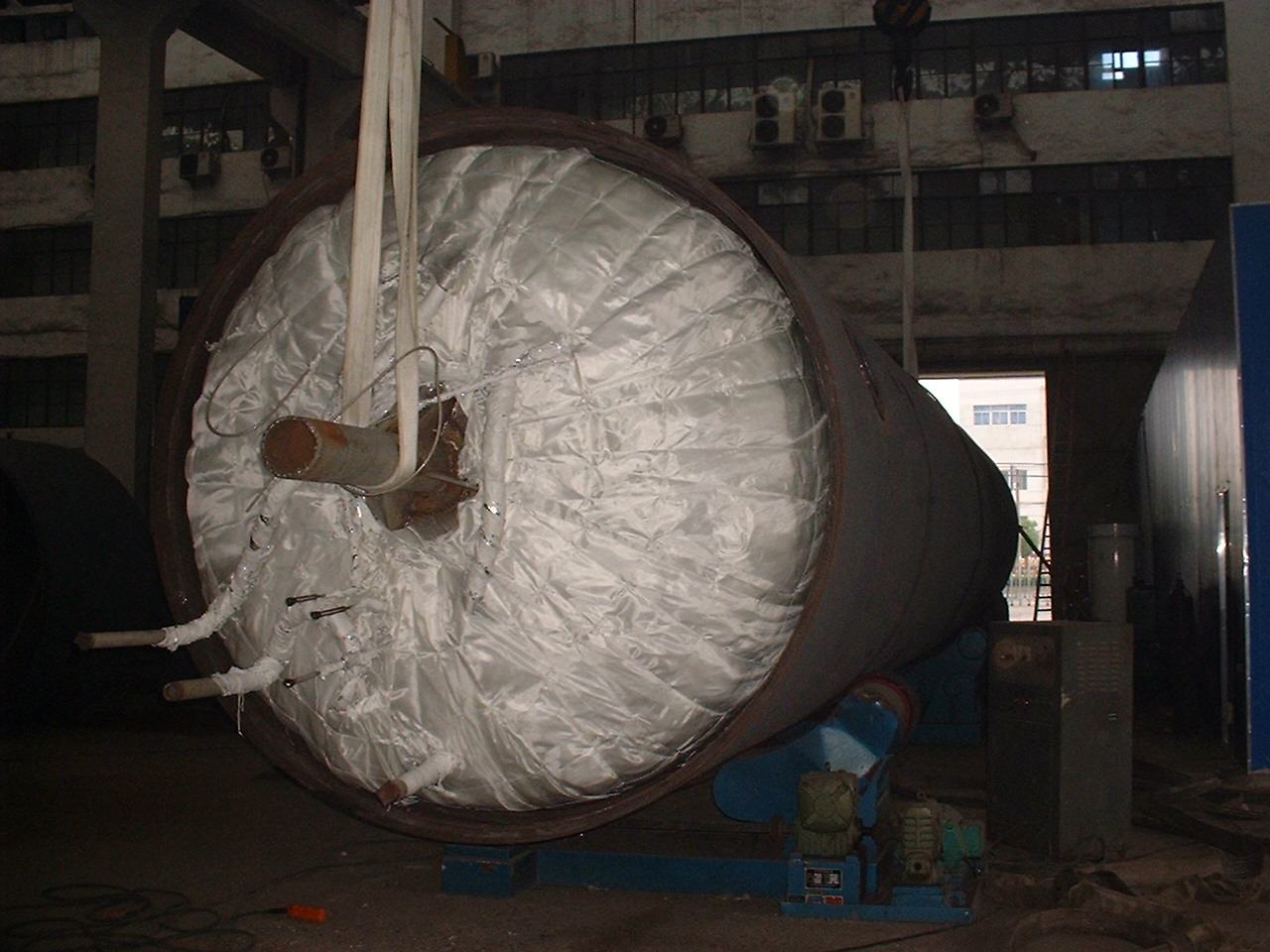

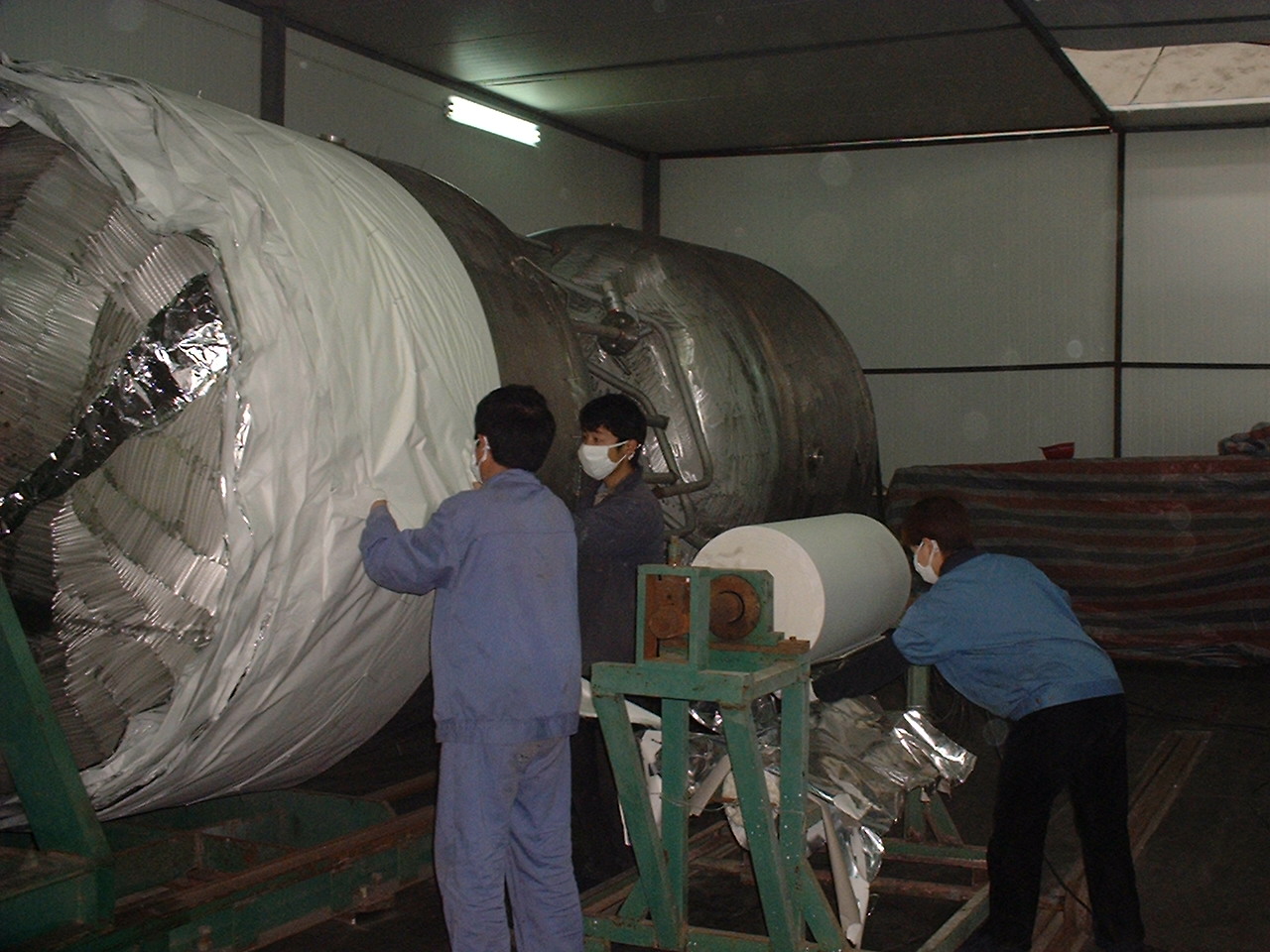

31107B CFLS-30/2.2 Cryogenic Liquid Tank
Tag No.:31107B
Model:CFLS-30/2.2
Name:Cryogenic Liquid Tank
1. 30m³ LCO2 tank-work pressure 22 bar technical specification
SN |
Name |
Parameters |
||
1.1 |
Model |
CFLS-30/2.2
|
||
1.2 |
Total volume |
31.6 m3
|
||
1.3 |
Effective volume |
30 m3
|
||
1.4 |
Loading medium |
LCO2
|
||
1.5 |
Design code |
ASME (without 3rd party inspection)
|
||
1.6 |
Main material |
|
||
|
1.6.1 |
Inner vessel |
SA-516M Gr485
|
|
1.6.2 |
Outer vessel |
GB/T 731 Q345R
|
||
1.7 |
Work TEMP. |
More than -40℃
|
||
1.8 |
Work pressure |
22 Bar
|
||
1.9 |
Design pressure |
24 Bar
|
||
1.10 |
Insulation |
Perlite powder
|
||
1.11 |
Static evaporation rate |
≤20 KPa/day
|
||
1.12 |
Interlayer sealing vacuum |
≤5.0 Pa
|
||
1.13 |
Corrosion allowance |
0 mm
|
1 mm
|
|
1.14 |
Welding joint coefficient |
|
||
|
1.14.1 |
Class A |
1.0
|
0.85
|
1.14.2 |
Class B |
1.0
|
1.0
|
|
1.15 |
Total net weight |
~20880 KG
|
||
1.16 |
Full weight with cryogenic liquid |
~40880(LCO2) KG
|
||
1.17 |
Filling rate |
95%
|
||
1.18 |
Dimension(W*H*L) |
Φ3088*2880*8900 mm
|
||
1.19 |
Main valve brand |
Herose safety valve + Chinese brand cryogenic valve + WIKA level gauge.
|
||
1.20 |
Type |
Vertical
|
||
1.21 |
Refrigeration system |
Stainless steel coils inside the tank for heat-exchange, use R404A as refrigerant, and heat-exchange capacity is 1187 kcal/h.
|
For more details, please feel free to contact us by email to sinocom6@163.com
Key Words: Cryogenic Liquid Tank, Cryogenic Powder Liquid Tank, LCO2 Storage Tank
