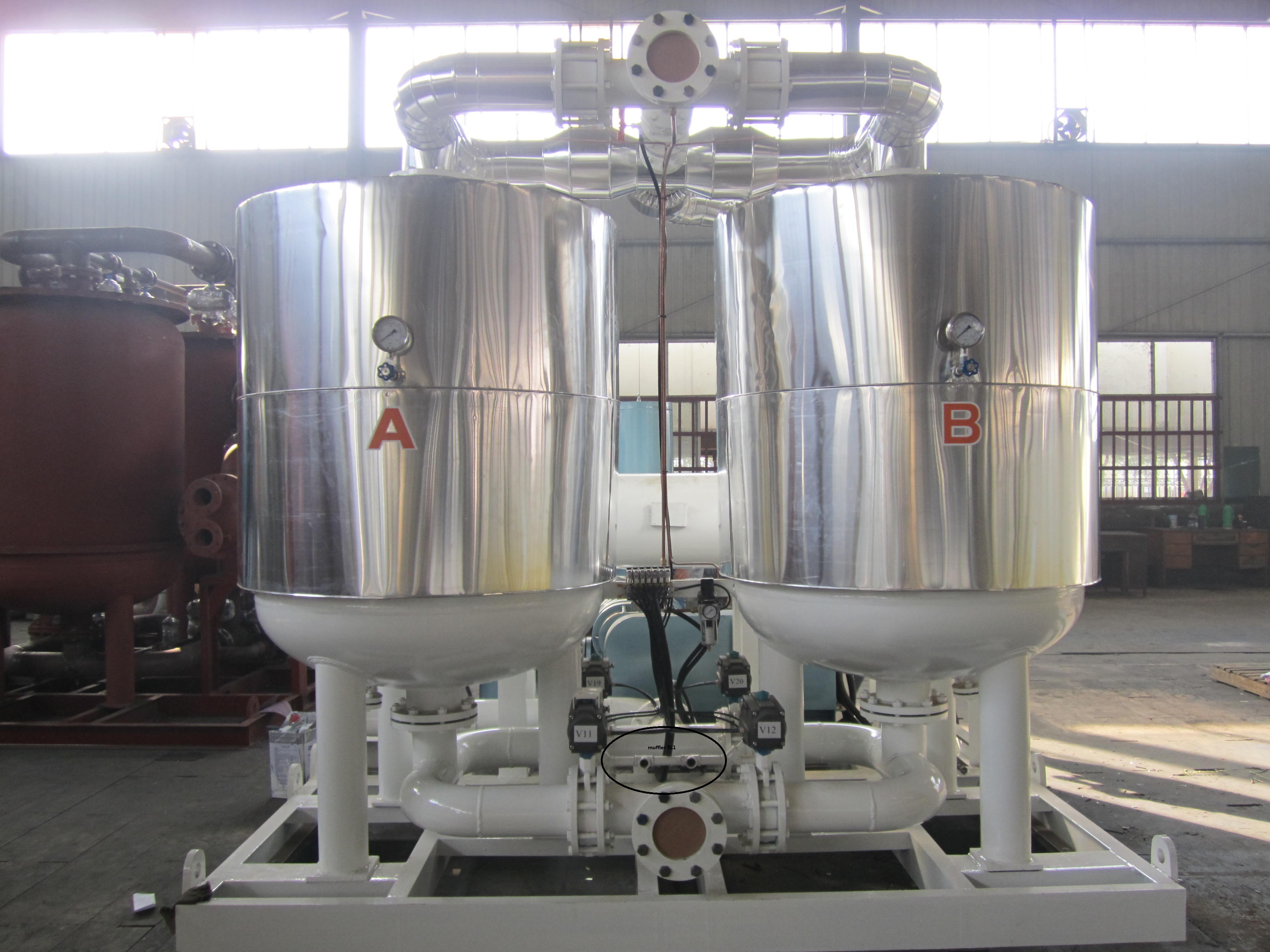

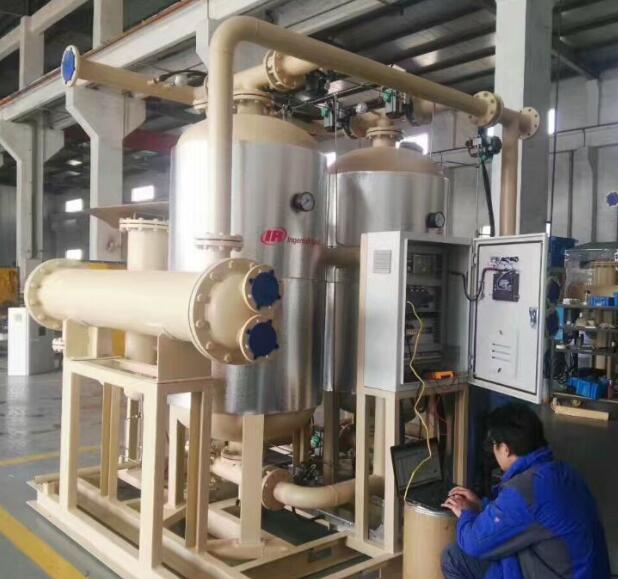

41007A GJ1-1400T/6 High Pressure Adsorption and Heat Regeneration

41000 Series-Gas Dryer

Tag No.:41007A

Model:GJ1-1400T/6

Name:High Pressure Adsorption and Heat Regeneration



1. Technical parameter

SN

Name

Parameter

1.1

Model

Micro heat regeneration dryer GJ1-1400T/6

1.2

Processing medium

Natural gas (see composition table)

1.3

Processing flow

84000 Nm3/h (1400 Nm3/min)

1.4

Regeneration air consumption

5% rated gas processing capacity

1.5

Design pressure

6 MPa

1.6

Work pressure

4~5 MPa

1.7

Design temperature

250℃

1.8

Input temperature

≤40℃

1.9

Pressure loss

3% inlet pressure

1.10

Regeneration mode

Heating regeneration

1.11

Dew point of finished gas (dehydration depth)

≤ -60℃

1.12

Solid particles of finished gas

≤ 3 μM

1.13

Adsorbent

Molecular sieve+activated alumina

1.14

Adsorbent lifespan

≥ 3 years

1.15

Adsorbent loading capacity

4200kg (single tower)

1.16

Adsorbent loading structure

Compression type

1.17

Drying tower material

Q345R

1.18

Work mode

Fully automatic

1.19

Work cycle

8 h (adjustable)

1.20

Power supply, power consumption

220 V/50 Hz, 200 KW

1.21

Installation method and location

Overall prying installation

1.22

Unit noise

≤ 80 dB (A)

1.23

Interface size

DN350, PN100

1.24

External dimensions (mm)

L 5850×W 3200×H5900



For more details, please feel free to contact us by email to sinocom6@163.com



Key Words: High Pressure Adsorption and Heat Regeneration, Micro Heat Regeneration Dryer, Gas Dryer
