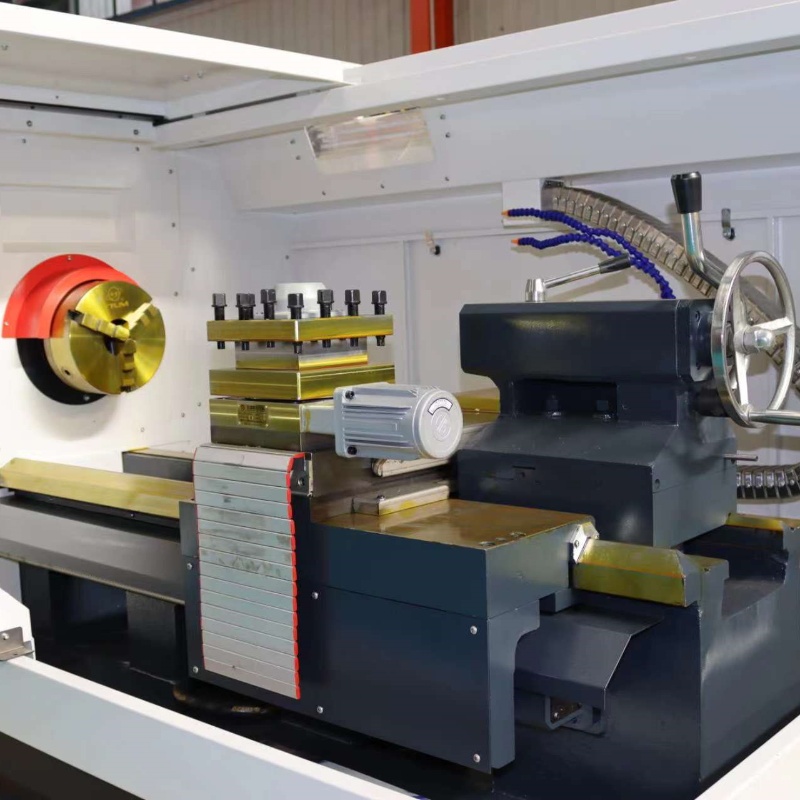

33107A CK6140/750 CNC Turning Lathe Machine
Tag No. : 33107A
Model: CK6140/750
Name: CNC Turning Lathe Machine
1. Main technical parameters
|
Name |
Unit |
Parameter |
||||
|
CK6140/550 |
CK6140/750 |
CK6140/1000 |
||||
|
Maximum turning diameter on the machine body |
Mm |
Φ400 |
||||
|
X-direction guide rail span |
Mm |
180 |
||||
|
Z-direction guide rail span |
Mm |
300 |
400 |
|||
|
Maximum turning diameter on the slide |
Mm |
Φ240 |
Φ180 |
|||
|
Apex distance |
Mm |
550 |
750 |
1000 |
||
|
Maximum disc processing diameter |
|
400 |
||||
|
Maximum turning length |
Mm |
420 |
620 |
830 |
||
|
Center height |
Distance from the machine body |
Mm |
230 |
210 |
||
|
Distance from the ground |
Mm |
1020 |
||||
|
Spindle through hole diameter |
Mm |
Φ48/Φ82 |
||||
|
Bar diameter |
Mm |
Φ40/Φ65 |
||||
|
Optional hollow chuck pull rod through hole |
Mm |
Φ40/ Φ65 |
||||
|
Spindle end type |
|
A2-6/A2-8 |
||||
|
Chuck |
Mm |
Normal Φ200 (48 holes) |
||||
|
Spindle taper hole taper |
No |
40° non-standard (48 holes) |
||||
|
Optional 8-inch hollow chuck pull tube inner diameter |
Mm |
Φ40 |
||||
|
Spindle limit speed |
Rpm |
2000 (48 holes) |
||||
|
Tail seat sleeve diameter |
Mm |
Φ60 |
||||
|
Tail seat sleeve bore taper |
No |
MT5# |
||||
|
Tail seat sleeve stroke |
Mm |
120 |
||||
|
Tail seat type |
|
Normal hand crank |
||||
|
Number of electric tool holders |
Pc |
4 |
||||
|
Knife square dimension |
Mm |
□20×20 (four work positions) |
||||
|
Screw model |
X direction |
Mm |
FDC2506-P3 |
FDC2506-P3 |
FDC2506-P3 |
|
|
Z direction |
Mm |
FDC3210-P3 |
FDC3210-P3 |
FDC4008-P3 |
||
|
X/Z direction rapid movement speed |
M/min |
6/8 |
6/8 |
6/8 |
||
|
X-direction stroke |
Mm |
220 |
220 |
220 |
||
|
Z-direction stroke |
Mm |
550 |
750 |
1000 |
||
|
Minimum setting unit |
Mm |
0.001 |
0.001 |
0.001 |
||
|
Main motor power |
KW |
5.5 (optional 7.5 KW) |
5.5 (optional 7.5 KW) |
5.5 (optional 7.5 KW) |
||
|
Total power supply |
KW |
11 (13) |
11 (13) |
11 (13) |
||
|
Net weight of machine |
Kg |
1900 |
2200 |
2300 |
||
|
Overall dimensions (L× W×H) |
Mm |
2200×1500×1750 |
2200×1500×1750 |
2500×1600×1700 |
||
For more details, please feel free to contact us by email sinocom6@163.com
