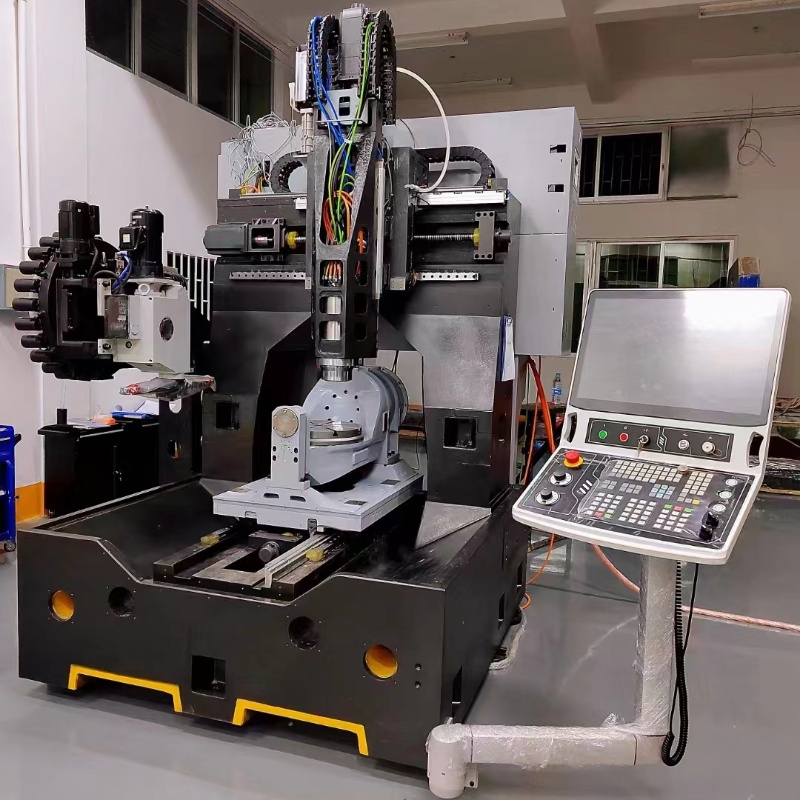

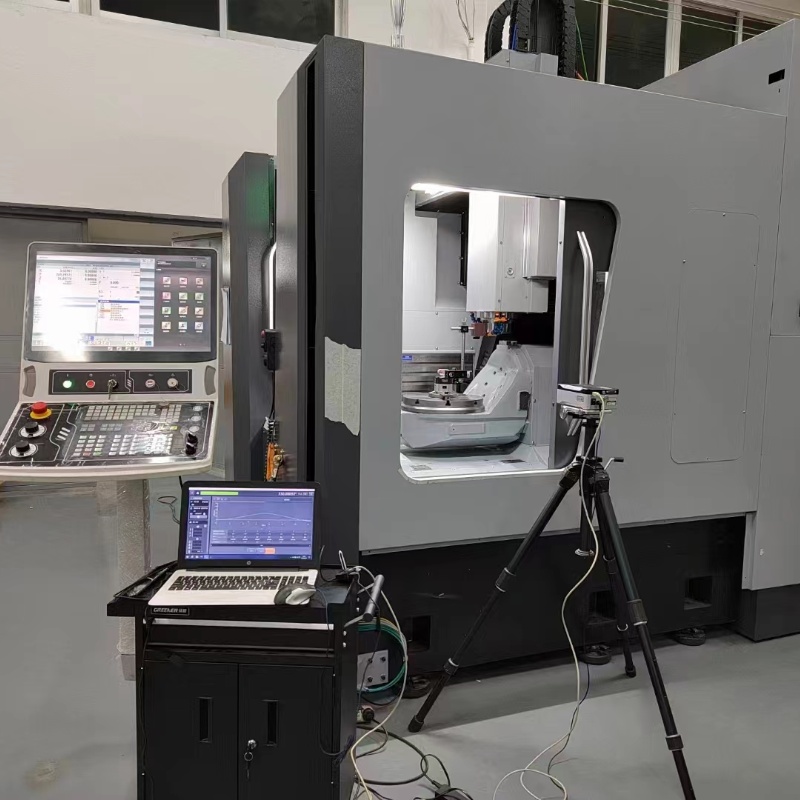

33106A GRU400 Five-axis Machining Center
Tag No. : 33106A
Model: GRU400
Name: Five-axis Machining Center
1. Main specifications
|
Item |
Unit |
GRU400 |
|
|
Capacity |
X axis travel |
mm |
800 |
|
Y axis travel |
mm |
500 |
|
|
Z axis travel |
mm |
430 |
|
|
Worktable to spindle nose |
mm |
50-480 |
|
|
Worktable to rotation center of axis B |
mm |
50 |
|
|
Worktable |
Worktable diameter (Max. Clamping workpiece diameter) |
mm |
Ф400(Ф500) |
|
Worktable load |
kg |
300 |
|
|
Rotation angle |
° |
B：±120/ C：360 |
|
|
Torque (rated / peak) |
N.m |
B: 1070 / 2090 C: 782 / 1540 |
|
|
Speed |
n/min |
B：50 / C：200（Special customization） |
|
|
Positioning accuracy |
＂ |
B：±10 / C：±8 |
|
|
Re-positioning accuracy |
＂ |
B：±4/ C：±4 |
|
|
Spindle |
Spindle type |
|
HSKA63-D200 |
|
Peak speed |
rpm |
15000 |
|
|
Motor Power（S1/S6） |
KW |
33.5(S1)/42.5(S6) |
|
|
Motor torque（S1/S6） |
Nm |
150(S1)/186（S6） |
|
|
Tool magazine |
Tool magazine type |
/ |
Disc tool magazine HSK A63 |
|
Tool quantity |
|
24 |
|
|
Max tool diameter |
mm |
20 |
|
|
Max weight of tool handle |
kg |
8 |
|
|
Max tool length |
mm |
250 |
|
|
Transmission |
X/Y/Z axis |
|
C3 class ball screw P class roller line rail |
|
Feed |
Axis rapid feed（X/Y/Z） |
m/min |
30/30/30 |
|
Accuracy |
Positioning accuracy（VDI3441） |
mm |
0.006 |
|
Repeat positioning accuracy（VDI3441） |
mm |
0.004 |
|
|
Power |
Power supply |
KVA |
40 |
|
Air supply |
Mpa |
0.65 |
|
|
Other |
Machine wight |
Kg |
9000 |
|
Space（L×W×H） |
mm |
2700×2280×2670 |
|
For more details, please feel free to contact us by email sinocom6@163.com
