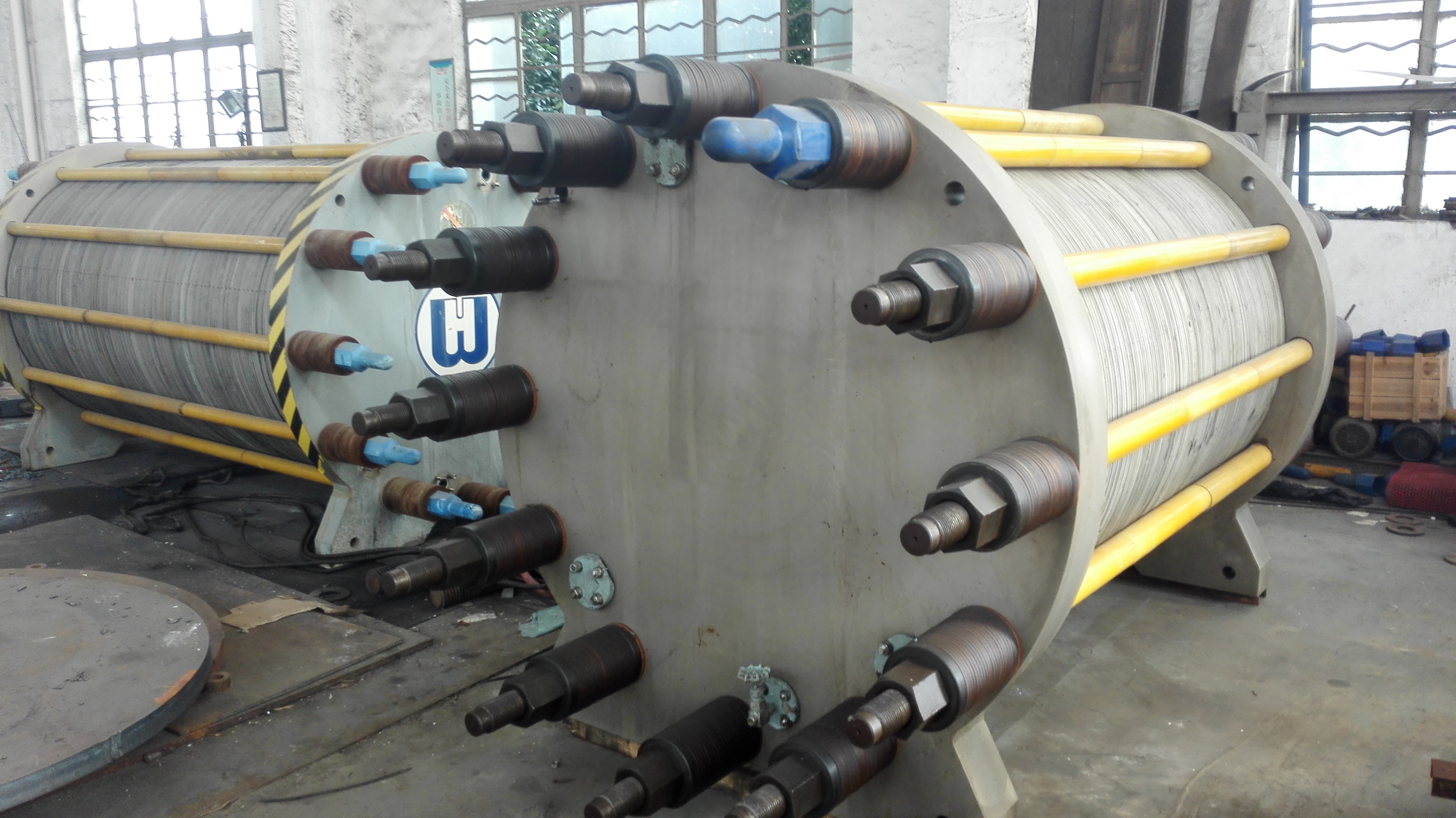

21014A H-30/30 Hydrogen Generator
Tag No.：21014A
Model：H-30/30
Name：Hydrogen Generator
1. General performance and utilities/consumables list
|
1.1 |
General performance |
As per buyer technical request |
|||||||
|
|
Description |
Output |
Purity |
Pressure |
Temperature |
Dew point |
|||
|
Gas hydrogen |
≥ 30 Nm3/hr |
≥ 99.999% H2 |
3.0 MPa G |
30~40°C |
≤ -60°C |
||||
|
Gas oxygen |
≥ 15 Nm3/hr |
≥ 98% O2 |
3.0 MPa G |
30~40°C |
Saturate |
||||
|
|
|
|
|
|
|
||||
|
Note: |
|
||||||||
|
N1.1.1 |
The output flow Nm3 is volume under normal conditions (0°C, 0.1013 MPa A). |
||||||||
|
N1.1.2 |
The performance is based on design basis of SN1 in this technical annex. |
||||||||
|
N1.1.3 |
The output flow of the hydrogen/oxygen is adjustable between 30~100% of total installed power. |
||||||||
|
N1.1.4A |
The pressure is after gas liquid separator unit. |
||||||||
|
N1.1.4B |
The pressure is after hydrogen purifier. |
||||||||
|
|
|
||||||||
|
1.2 |
Electricity requirement |
Preliminary reference |
|||||||
|
|
SN |
Ref. |
Equipment |
Installed power, KW |
Shaft power, KW |
||||
|
1.2.1 |
3.1 |
Rectifier cabinet (Water electrolyzer) |
300 |
180 |
|||||
|
1.2.2 |
3.2.5 |
Lye pump |
3 |
2 |
|||||
|
1.2.3 |
3.2.11 |
Feed water pump |
1.5 |
1 |
|||||
|
1.2.4 |
3.3.1 |
De-oxygen tower |
2 |
2 |
|||||
|
1.2.5 |
3.3.5 |
Hydrogen dryer heater |
5 |
2 |
|||||
|
1.2.6 |
3.4.1 |
De-hydrogen tower |
2 |
2 |
|||||
|
1.2.7 |
3.4.5 |
Oxygen dryer heater |
5 |
2 |
|||||
|
1.2.8 |
3.6 |
Instrumentation control system |
3 |
3 |
|||||
|
1.2.9 |
3.7 |
Demineralized water machine |
4 |
2 |
|||||
|
1.2.10 |
3.8.2 |
Gas hydrogen compressor |
5.5×2 |
4×2 |
|||||
|
1.2.11 |
3.9.2 |
Gas oxygen compressor |
5.5 |
4 |
|||||
|
1.2.12 |
3.11 |
Water cooling system (tower, pump, water softener) |
5 |
4 |
|||||
|
1.2.13 |
3.12.1 |
Water chiller |
6.3 |
5 |
|||||
|
1.2.14 |
3.12.2 |
Chilled water recycle pump |
1.5 |
1 |
|||||
|
1.2.15 |
3.13 |
Instrumental air system |
2.25 |
2 |
|||||
|
1.2.16 |
Total installed power |
333.55 |
204 |
||||||
|
1.2.17 |
Rated specific power consumption (DC) |
4.5+/-0.2 KWH/Nm3 H2 |
|||||||
