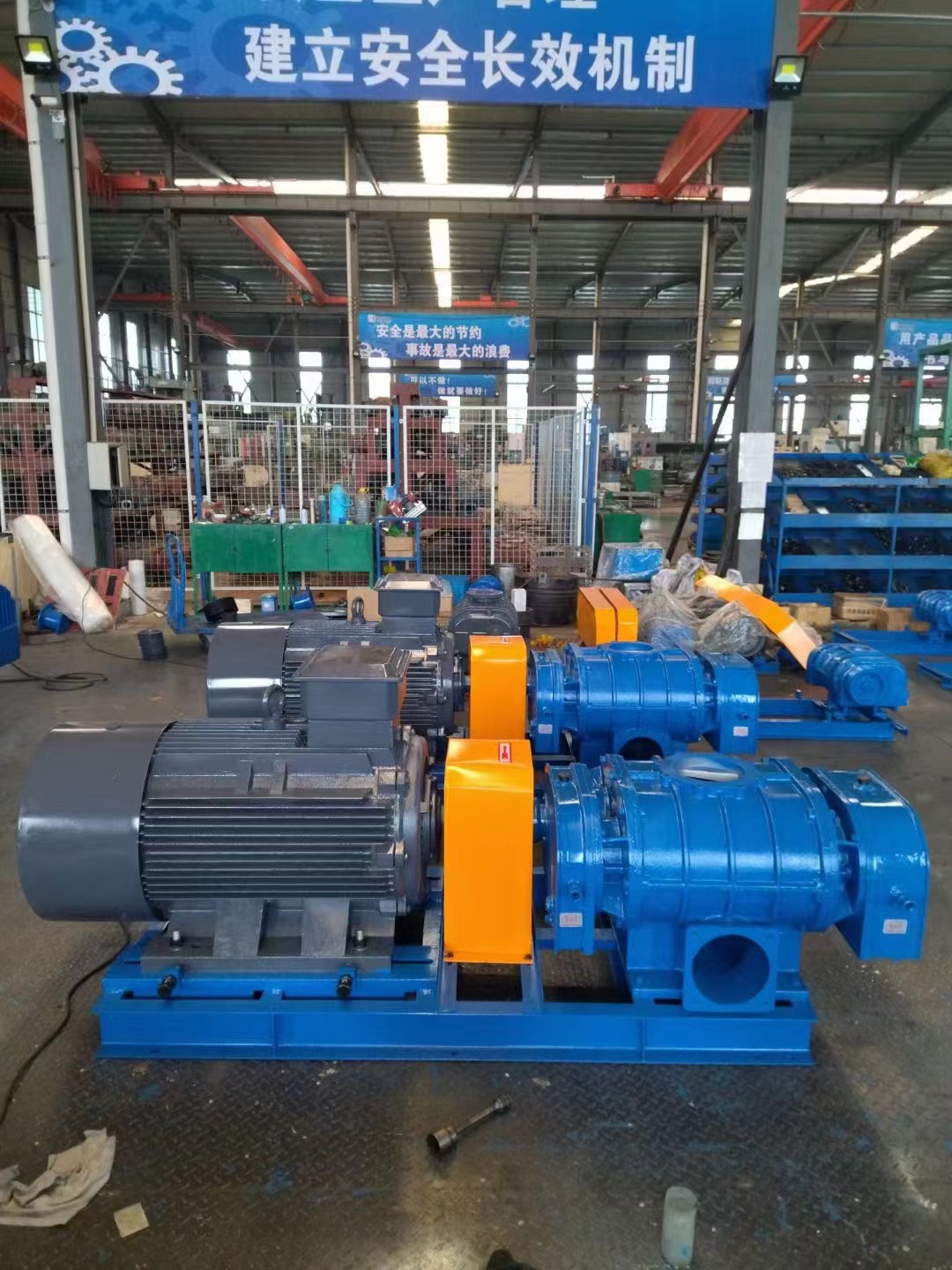

53108A HDSR200HB Roots Blower
Tag No.：53108A
Model：HDSR200HB
Name：Roots Blower
|
1 |
Technical data |
|
|
|
1.1 |
Capacity |
3200 Nm3/h @ 1 kg/cm2 |
|
|
1.2 |
Type |
Roots blower |
|
|
1.3 |
Model |
HDSR200HB water cooling |
|
|
1.4 |
Discharge connection Drive |
DN200 Direct coupling |
|
|
1.5 |
Medium |
Air |
|
|
1.6 |
Inlet temperature |
≤ 45℃ |
|
|
1.7 |
inlet flow diff. pressure Cooling type motor power blower speed |
3200 Nm3/h 1 bar(g) Water cooling 4P-160kw/380v/50hz (VFD explosive proof motor, DIIBT4) 1480 rpm |
|
|
1.8 |
Blower Sealing type |
Labyrinth seal |
|
|
1.9 |
Scope of supply |
Complete set air blower (incl. Bare shaft blower, inlet filter silencer, base frame, outlet pressure gauge, outlet silencer, coupling & coupling guard, check valve, flexible joint, relief valve, anchor bolts & nuts) China brand VFD explosive proof motor (380V/50Hz) China brand VFD explosive proof control cabinet |
|
|
2. |
Blower main parts material |
||
|
2.1 |
Rotary lobe, case, side plate |
HT250 (gray cast iron) |
|
|
2.2 |
Shaft |
40Cr |
|
|
2.3 |
Bearings |
GCr15 |
|
|
2.4 |
gear |
20CrMnTi |
|
|
2.5 |
Oil seal |
Viton (Taiwan TTO) |
|
|
2.6 |
Safety valve |
Aluminum alloy |
|
|
2.7 |
Check valve |
HT250 |
|
|
2.8 |
Pressure gauge |
Stainless steel |
|
|
2.9 |
Flexible joint |
Rubber with Flange |
|
For more information, please contact us by email sinocom6@163.com
