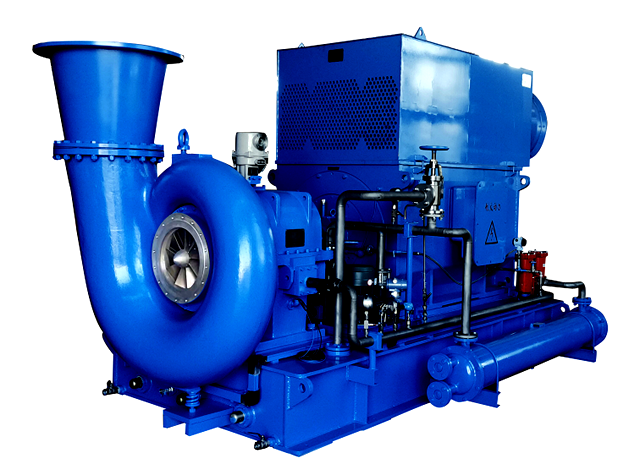

53217A C100-1.5Z Multi Stage Centrifugal Blower
Tag No.：53217A
Model：C100-1.5Z
Name：Multi Stage Centrifugal Blower
1. Data sheet for multi-stage centrifugal blower
|
Equipment name |
Centrifugal blower |
Blower model |
C100-1.5Z |
|
Item |
|
Qty |
4 set |
|
Work conditions |
Conveying medium |
Air |
|
|
Inlet flow rate (m³/min) |
100 |
||
|
Inlet temperature (℃) |
-27°C~49°C |
||
|
Inlet pressure (KPa A) |
101.3 |
||
|
Boost pressure (KPa) |
42 |
||
|
Blower performance |
Blower model |
C100-1.5Z |
|
|
Inlet flow rate (m³/min) |
100 |
||
|
Boost pressure ( KPa) |
42 |
||
|
Blower speed (r/min) |
2980 |
||
|
Transmission form |
Coupling |
||
|
Shaft power (KW) |
101.1 |
||
|
Matching motor |
Model |
YBX4-315M-2-132KW |
|
|
Power(kw) |
132 |
||
|
Voltage (V) |
380 |
||
|
Frequency (HZ) |
50 |
||
|
IP Grade |
IP55 |
||
|
Insulation level |
Class F |
||
|
Motor manufacturer |
Xianda Motor |
||
|
Lubrication and cooling |
Lubrication method |
Lubricating oil lubrication |
|
|
Lubricating grease grade |
Mobil SHC629 |
||
|
Cooling method |
Water-cooling |
||
|
Cooling water flow rate (L/min) |
6-8 |
||
|
Cooling water pressure (kg/cm2) |
2-3 |
||
|
Material |
Casing |
HT250 |
|
|

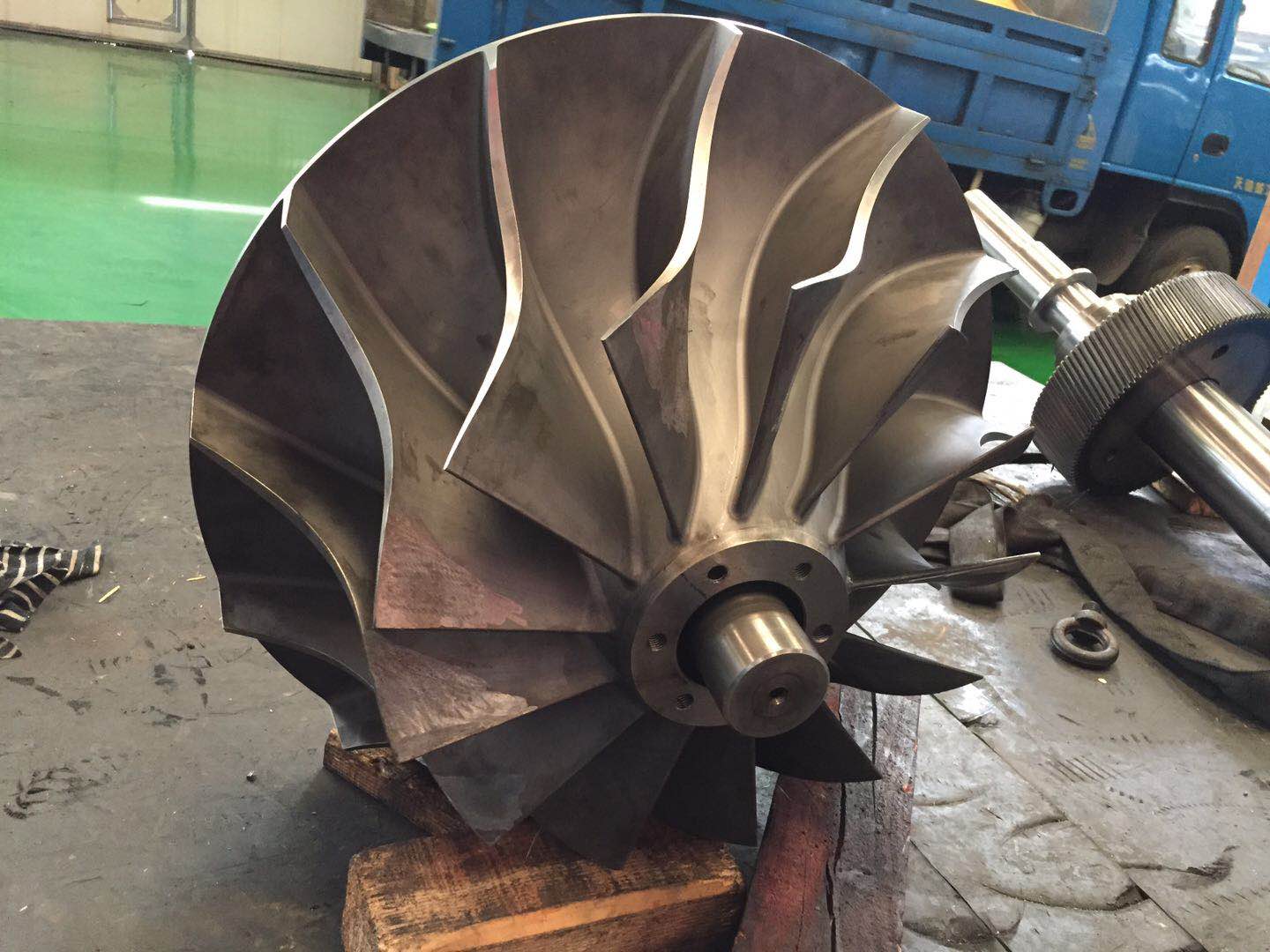

Vane |
ZL101A/16Mn |
||
|
Main shaft |
45# |
||
