60106A VG Vacuum Gauge

60100 Series-Pressure Instrument

Tag No.:60106A

Model:VG

Name:Vacuum Gauge

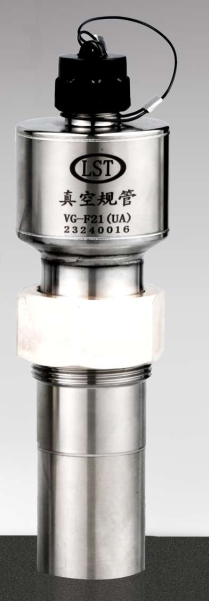

The VG series vacuum gauges use MEMS chip sensing technology, which has characteristics such as high accuracy and stability. Al stainless-steel shell, with gold-plated aviation plug-in interface, can meet the long-term outdoor conditions of waterproofing, rust prevention, and salt spray prevention. Multiple selectable connections can be used for different installation scenarios. Equipped with our ENY/GNY series telemetry, vacuum online can be achieved, and users can remotely view the vacuum status of the container through the platform.



1. Product technical parameters

SN

Name

Parameters

1.1

Power supply

6V~24V DC

1.2

Vacuum range

1x10-3~1x102Pa

1.3

Vacuum measurement precision

±20%@1x10-2~1x102Pa@-30~65

±50%@1x10-3~1x10-2Pa@-30~65

1.4

Leak rate

1.0x10-11(Pa.m3/s)

1.5

IP rating

IP67

1.6

Explosion proof sign

Ex ib IlB T6 Gb

1.7

Operating temperature

-30~80

1.8

Storage temperature

-40~85



For more details, please feel free to contact us by email to sinocom6@163.com



Key Words: VG Vacuum Gauge,Vacuum Display Tube, Stainless Steel Vacuum Gauge
