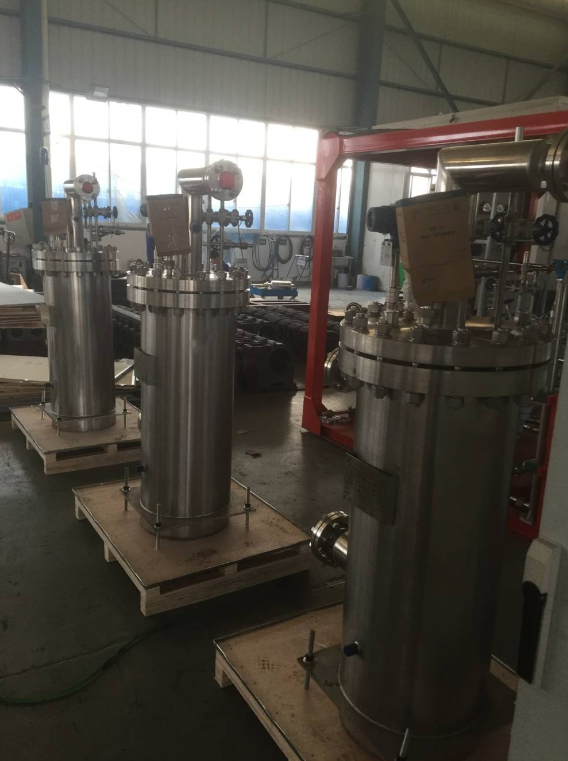

58222B SLP-8.5/50×6 LNG Submersible Pump

58200 Series-Centrifugal Cryogenic Liquid Pump

 Tag No.:58222B

Model:SLP-8.5/50×6

Name:LNG Submersible Pump



1. Performance parameter

1.1 SLP-8.5/50×6 Technical parameters of submersible pump unit

SN

Name

Values and performance

1

Type

Vertical, submersible pump

2

Stages

6

3

Work medium

LNG

4

Design temperature

-196 ºC

5

Flow rate

1.5~8.5 m3/h

6

Head

285 m

7

Efficiency

41%

8

Input pressure

0.02~0.8 MPa

9

NPSHr

1.5 m

10

Rotation speed

5500 r.p.m(95 Hz)

11

Minimum flow

1.5 m³/h

12

Motor power/number of poles/speed

3 Ph, 380 V, 100 Hz, 11 KW/2 P/5800 r.p.m

13

Motor insulation level

F

14

Variable frequency drive (recommended)

15 KW (user-supply)

15

Inlet pipe diameter

2”, Class150

16

Outlet pipe diameter

2”, Class150

17

Return gas outlet pipe diameter

1.5”, Class150

18

Vent nozzle

1/2”, Class150



For more information, please contact us by email sinocom6@163.com
