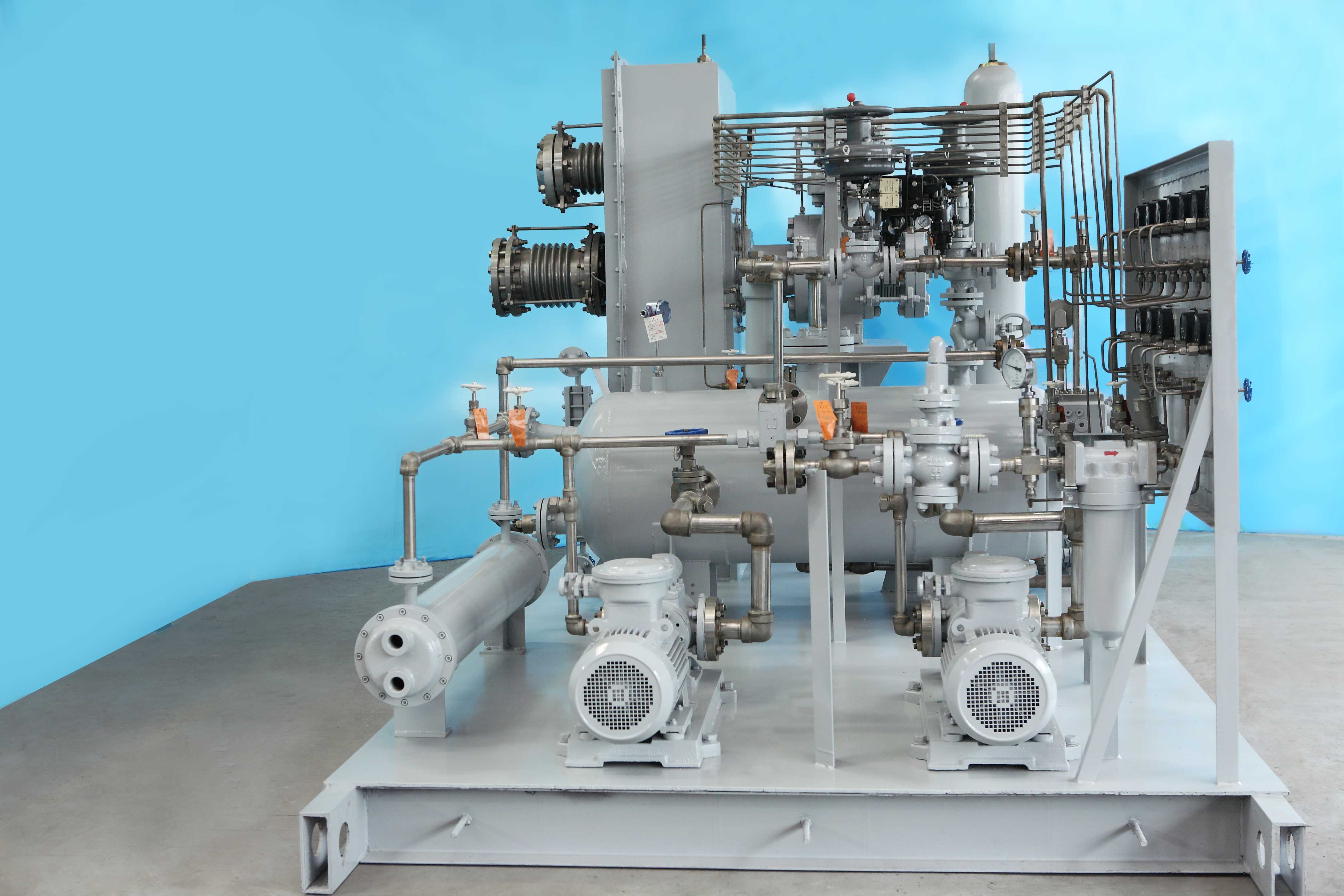

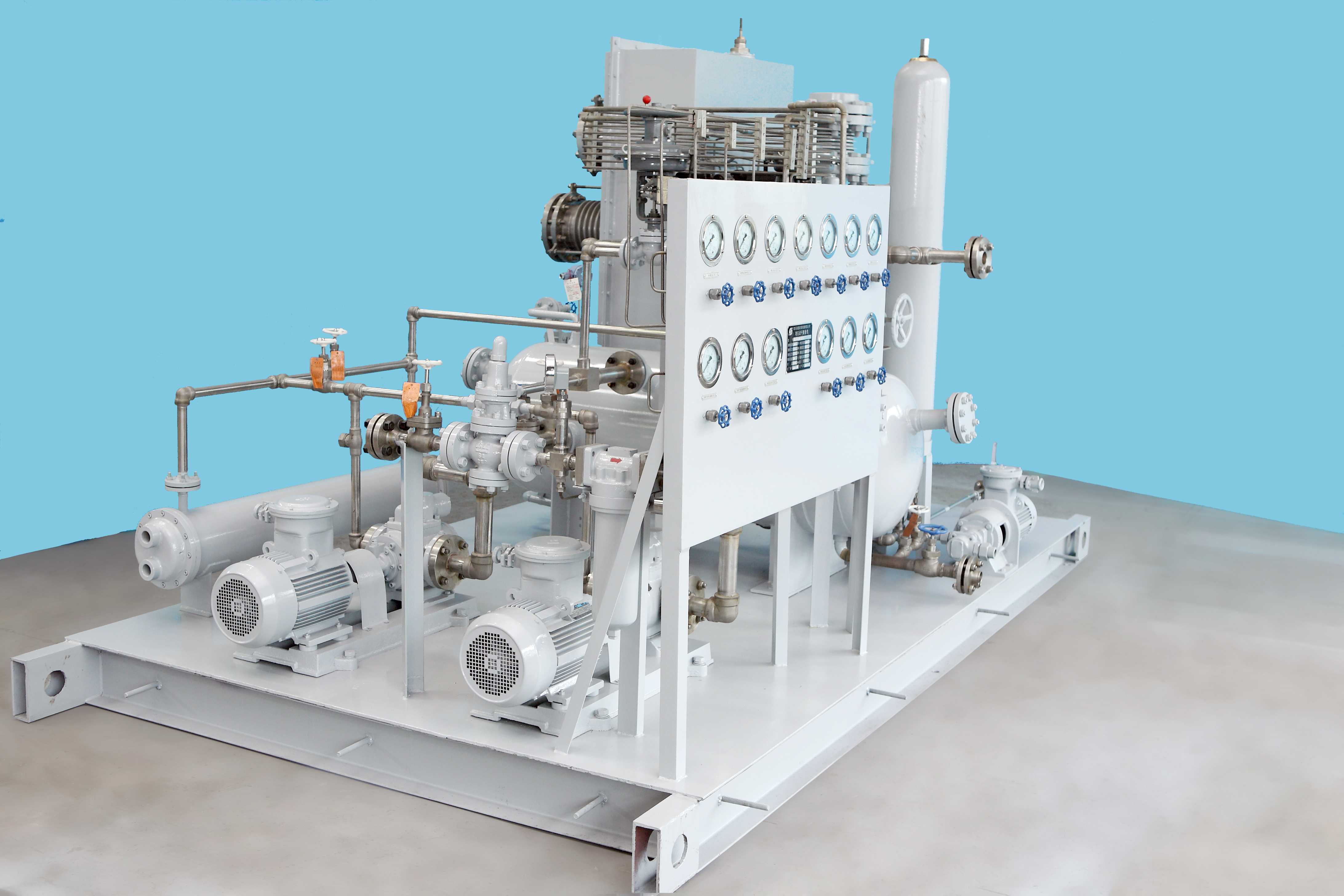

57102A PLPK Natural Gas Turbine Expander
Tag No.:57102A
Model:PLPK
Name:Natural Gas Turbine Expander
1. Technical conditions
1.1 100% design gas flow
SN |
Name |
Expander |
Booster compressor |
1.1.1 |
Work medium |
Natural gas |
Natural gas |
1.1.2 |
Flow (0℃、101.325Kpa) |
75080Nm3/h |
99370Nm3/h |
1.1.3 |
Inlet pressure(A) |
5.897MPa |
4.571MPa |
1.1.4 |
Inlet temperature |
-35.1℃ |
39.56℃ |
1.1.5 |
Outlet pressure(A) |
2.056MPa |
6.087MPa |
1.1.6 |
Outlet temperature |
-75.63℃(moisture content 7.7%) |
63.84℃ |
1.1.7 |
Efficiency |
85% |
75% |
1.1.8 |
Flow regulation range |
±20% |
|
1.2 115% design gas flow
SN |
Name |
Expander |
Booster compressor |
1.1.1 |
Work medium |
Natural gas |
Natural gas |
1.1.2 |
Flow (0℃、101.325Kpa) |
82890Nm3/h |
114300Nm3/h |
1.1.3 |
Inlet pressure(A) |
5.738MPa |
4.567MPa |
1.1.4 |
Inlet temperature |
-35.1℃ |
39.4℃ |
1.1.5 |
Outlet pressure(A) |
2.036MPa |
5.928MPa |
1.1.6 |
Outlet temperature |
-74.15℃(moisture content 7.17%) |
61.52℃ |
1.1.7 |
Efficiency |
85% |
73% |
1.1.8 |
Flow regulation range |
±20% |
|
For more details, please feel free to contact us by email to sinocom6@163.com
Key Words: Natural Gas Turbine Expander、Turbine Expander、Expander
