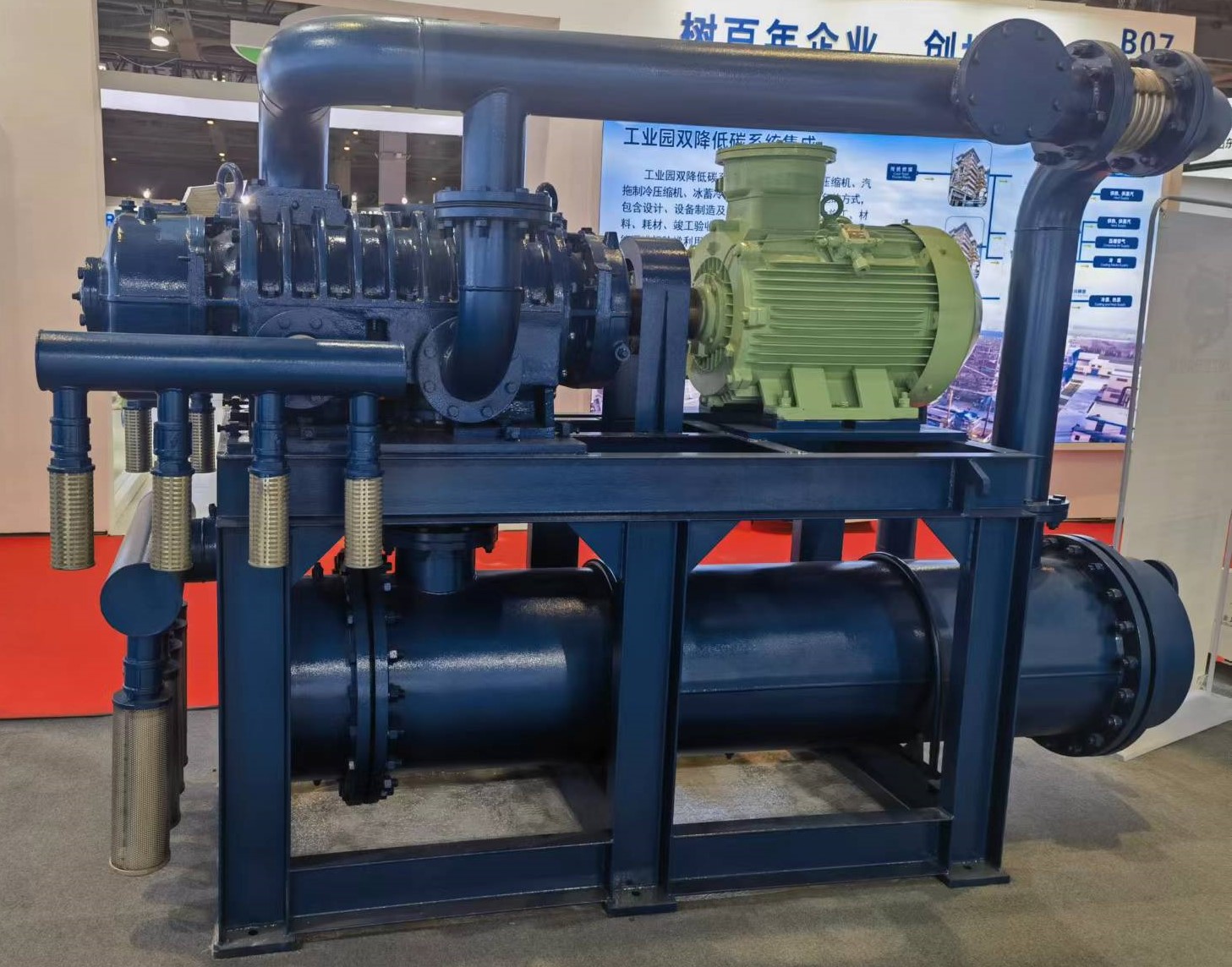

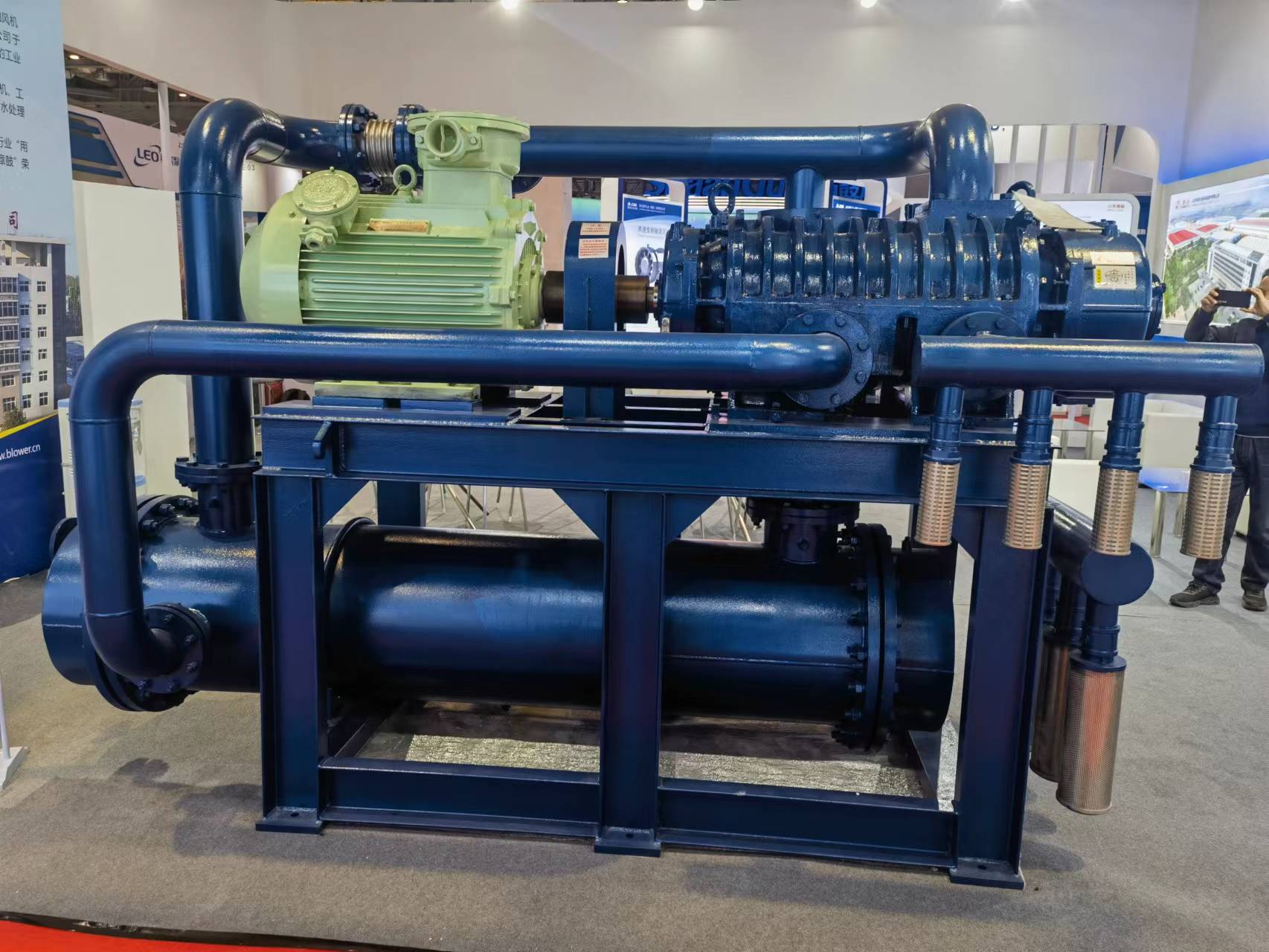

53107A LR6-400NJSⅢ+LR5-300NJSⅢ Roots Blower
Tag No.：53107A
Model：LR6-400NJSⅢ+LR5-300NJSⅢ
Name：Roots Blower
1. Blower model selection
|
Name |
1St stage blower |
|
Blower model |
LR6-400NJSⅢ |
|
Local atmospheric pressure (kPa ABS) |
100 |
|
Input pressure（kPa ABS） |
97 |
|
Input temperature (℃) |
35 |
|
Input air flow (m3/min) |
169 |
|
Exhaust pressure（kPa ABS） |
183 |
|
Maximum boost (kPa) |
86 |
|
Exhaust temperature (℃) |
57 |
|
Rotary speed (r/min) |
985 |
|
Shaft power (KW) |
308 |
|
Seal form |
Mechanical seal + oil baffle ring + labyrinth seal |
|
Sealing form of shaft extension end |
Framework oil seal + grease filling |
|

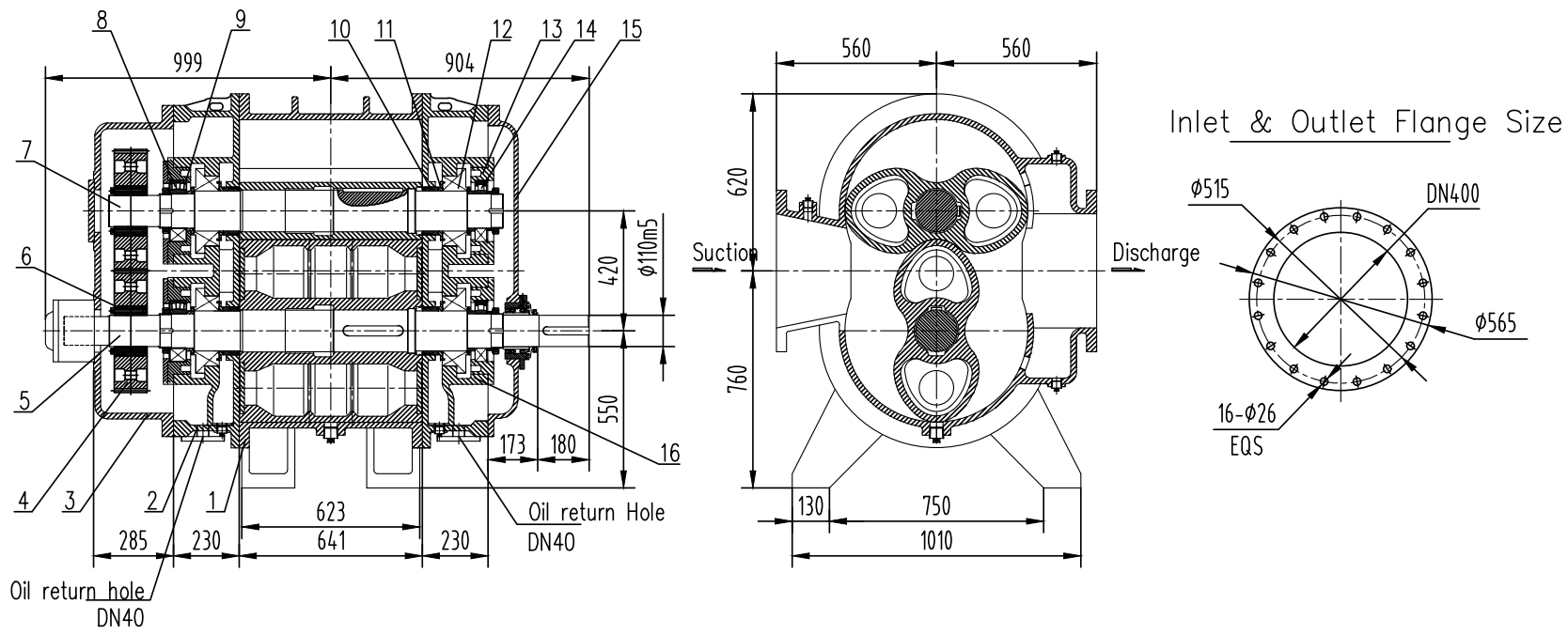

Inlet flange diameter（mm） |
400 |
|
Outlet flange diameter（mm） |
400 |
|
Package motor (number of poles, power) |
6-pole 710KW double shaft extension motor |
|
Note |
Blower overcurrent parts: GX4 CrNi 13-4 |
|
Name |
2nd Stage Blower |
|
Blower model |
LR5-300NJSⅢ |
|
Local atmospheric pressure (kPa ABS) |
100 |
|
Input pressure（kPa ABS） |
183 |
|
Input temperature (℃) |
57 |
|
Input air flow (m3/min) |
101.6 |
|
Exhaust pressure（kPa ABS） |
280 |
|
Maximum boost (kPa) |
97 |
|
Exhaust temperature (℃) |
72 |
|
Rotary speed(r/min) |
985 |
|
Shaft power (KW) |
208 |
|
Sealing form |
Mechanical seal + oil baffle ring + labyrinth seal |
|
Sealing form of shaft extension end |
Framework oil seal + grease filling |
|
Inlet flange diameter（mm） |
300 |
|
Outlet flange diameter（mm） |
300 |
|
Package motor (number of poles, power) |
6-pole 710KW double shaft extension motor |
|
Note |
Blower overcurrent parts: GX4 CrNi 13-4 |
For more information, please contact us by email sinocom6@163.com
Key Words: Roots Blower, Vertical Screw Roots Blower, Inert Gas Roots Blower
