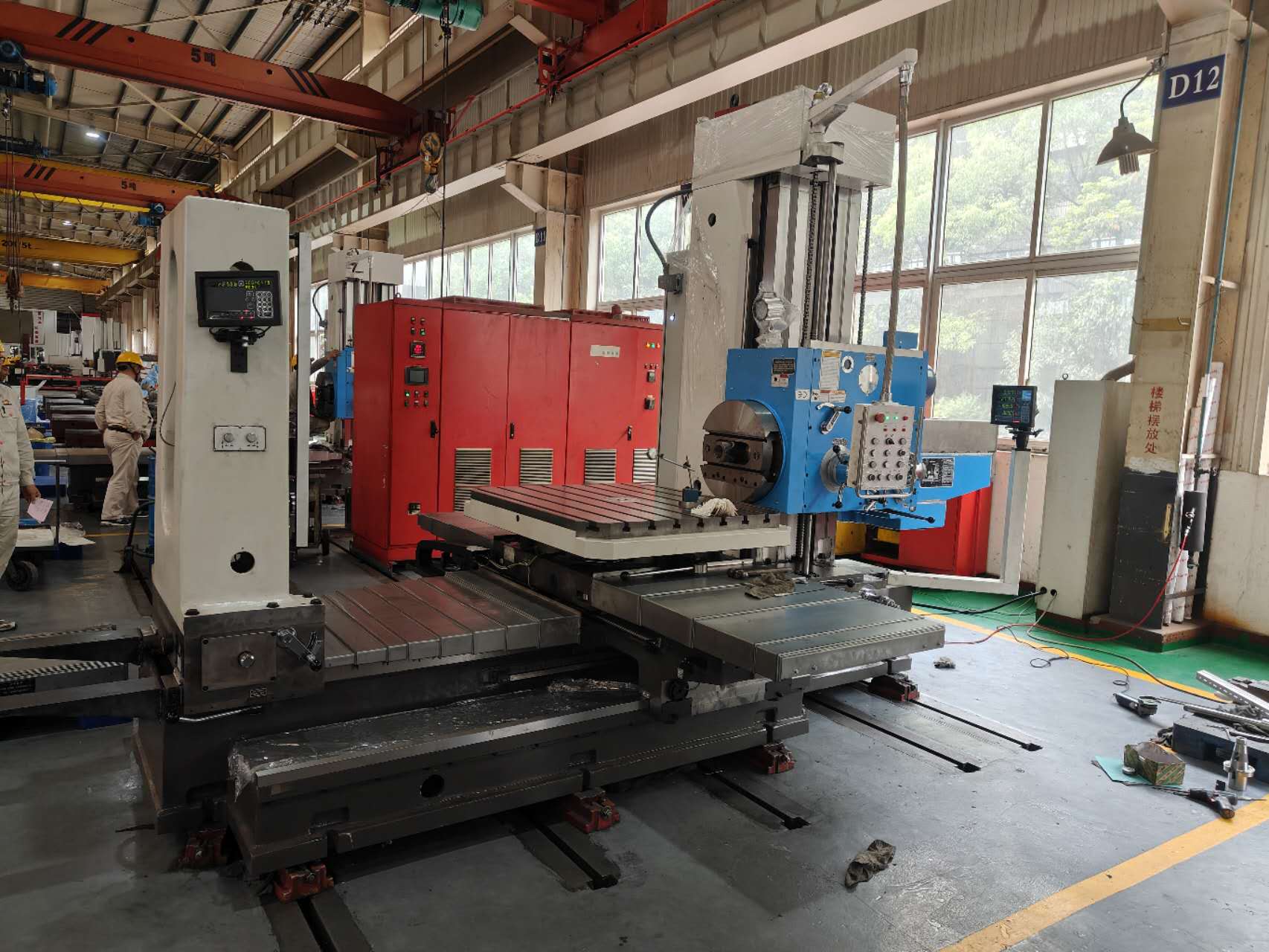

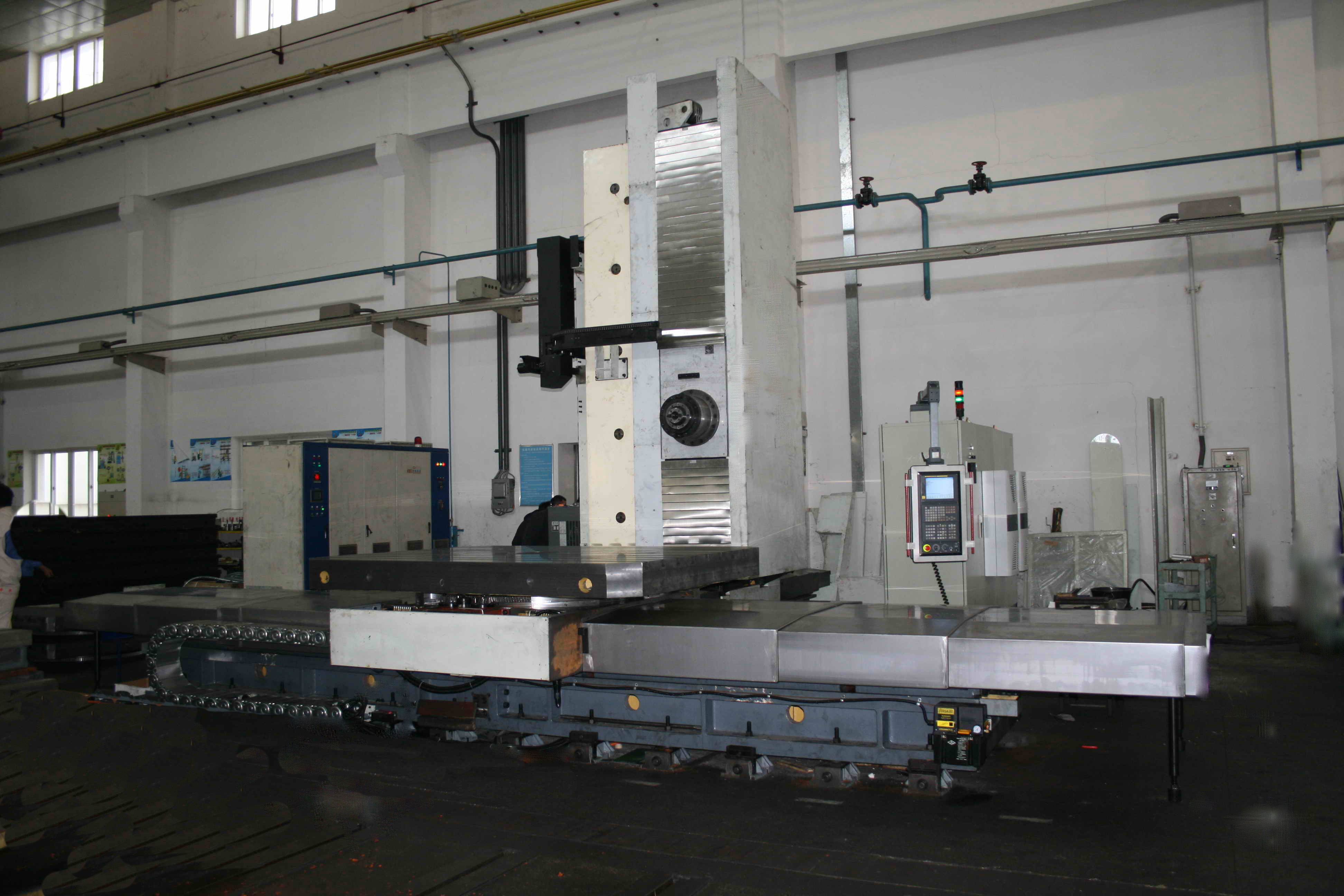

33105A TX6111D Horizontal Milling Machine
Tag No. : 33105A
Model: TX6111D
Name: Horizontal Milling Machine
1. Main specification (for reference only)
|
Model |
TX6111D |
Units |
||
|
Spindle head |
Boring spindle diameter |
110 |
mm |
|
|
Spindle taper |
ISO 50 |
-- |
||
|
Spindle speed |
18 steps 9～1000 |
r/min |
||
|
Main motor power |
7.5 |
kW |
||
|
Spindle max torque |
1000 |
Nm |
||
|
Spindle max resistance |
15000 |
N |
||
|
Min distance from spindle center to table surface |
0 |
mm |
||
|
Max drilling diameter of spindle |
65 |
mm |
||
|
Max boring diameter of spindle |
300 |
mm |
||
|
Machine travel |
Table cross travel (X) |
1000 |
mm |
|
|
Vertical travel of spindle head(Y) |
900 |
mm |
||
|
Table longitude travel (Z) |
1400 |
mm |
||
|
Spindle axial travel (W) |
600 |
mm |
||
|
Facing head slide travel(U) |
170 |
mm |
||
|
Rotary table |
Table size |
1000×1100 |
mm |
|
|
Max loading capacity |
2500 |
kg |
||
|
Facing head |
Facing head dia. |
540 |
mm |
|
|
Facing head speed |
14 steps 6～221 |
r/min |
||
|
Max torque of facing head |
1500 |
Nm |
||
|
Max boring diameter of facing head |
600 |
mm |
||
|
Feed speed range |
Feed capacity |
Spindle and table longitude and cross feed capacity (calculate as per spindle) |
12 steps 0.04～6 |
mm/r |
|
Spindle and table longitudes and cross feed capacity (calculate as per facing head) |
12 steps 0.06～9 |
mm/r |
||
|
Facing head slide feed capacity (calculate as per facing head) |
12 steps 0.04～6 |
mm/r |
||
|
Positioning accuracy |
X、Y、(Z Optional axis) |
0.02/300，0.045/full travel |
mm |
|
|
4×90° |
± 6 |
″ |
||
|
Machine read out accuracy |
X、Y、(Z Optional axis) |
0.005 |
mm |
|
|
Overall electrical capacity |
-- |
About 15 |
kVA |
|
|
Machine dimension |
LXWXH |
About 5215×2140×3040 |
mm |
|
|
G.W. |
|
About 12000 |
kgs |
|
For more details, please feel free to contact us by email sinocom6@163.com
