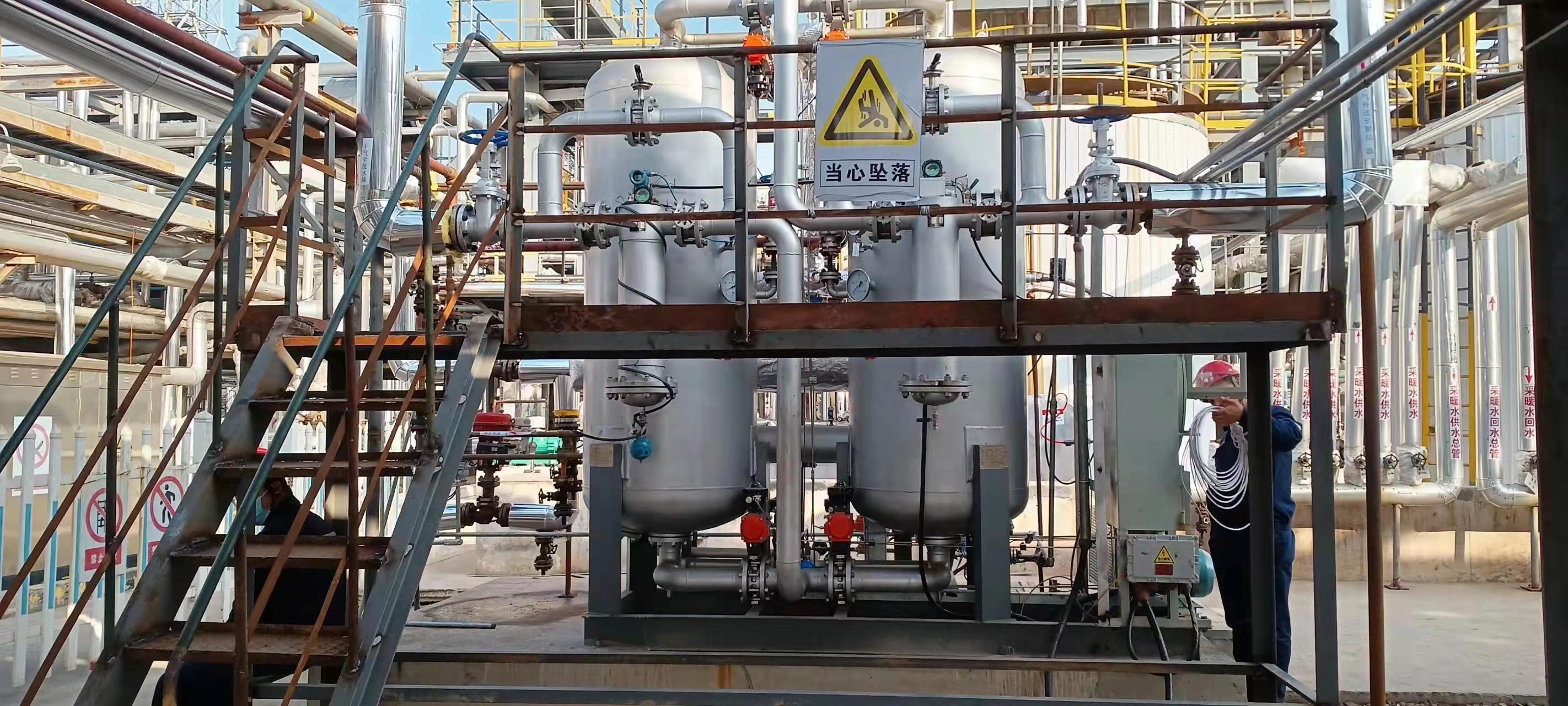

41004A GJ1-25/1.6 Gas Dryer
Tag No.：41004A
Model：GJ1-25/1.6
Name：Gas Dryer
1. Technical parameter
1.1 Adsorption dryer
|
SN |
Name |
Unit |
Data |
|
1 |
Equipment name |
|
Gas dryer |
|
2 |
Equipment model |
|
GJ1-25/1.6 |
|
3 |
Medium |
|
Main composition： H2 58.83% Hydrocarbon 40.62% H2O 0.55% |
|
4 |
Rated capacity |
Kg/h |
1167(21Nm3/min) |
|
5 |
Current stream work pressure |
MPa G |
1.1 |
|
6 |
System design work pressure (including pressure vessel, pipeline) |
MPa G |
1.6 |
|
7 |
Valves pressure grade |
PN |
25bar |
|
8 |
Inlet temperature |
℃ |
37(≤40℃) |
|
9 |
Design temperature |
℃ |
250 |
|
10 |
Inlet moisture content |
|
H2O 0.55% |
|
11 |
Inlet oil content |
Ppm |
0.1 |
|
12 |
Outlet moisture content |
|
≤5ppm H2O （-66℃ normal pressure dew point) |
|
13 |
System pressure drop |
MPa |
≤0.03 |
|
14 |
Adsorbent |
|
Active alumina(<20%)+4A molecular sieve, full filling |
|
15 |
Adsorbent loading structure |
|
Compact type |
|
16 |
Adsorption tower material |
|
SS304 |
|
17 |
Filling amount of adsorbent |
Kg/tower |
400 |
|
18 |
Adsorbent life |
|
3-5year |
|
19 |
Regeneration mode |
|
Heat regeneration by steam |
|
20 |
MP Steam |
|
Supply temperature (Normal)：229. °C 8 Supply pressure (Min/Normal/Max)： 1800 /1800 /1800 KPa (g) Mechanical design temperature: 280°C Mechanical design pressure: 2100 KPa (g) |
|
21 |
Steam consumption |
Kg/h |
~15kg/hr |
|
22 |
Cooling |
|
Air cooling |
|
23 |
Regeneration gas |
|
Dry gas |
|
24 |
Operation mode |
|
Automatic continuous operation |
|
25 |
Single tower adsorption time |
h |
6(adjustable) |
|
26 |
Control mode |
|
PLC auto-Control |
|
27 |
Total power |
Kw |
0.5 |
|
28 |
Power Supply |
|
220V/1Ph/50Hz |
|
29 |
Explosion proof grade |
|
CT6 |
|
30 |
Noise |
Db（A） |
80, 1m from the equipment |
|
31 |
Ambient temperature |
℃ |
≤40 |
|
32 |
Main gas inlet and outlet diameter |
|
DN80, PN25 |
|
33 |
Regeneration gas user supply pressure |
MPa |
1.07MPa |
|
34 |
Regeneration gas output pressure from dryer |
MPa |
0.01(to be confirmed by user) |
|
35 |
Regeneration gas flow |
Kg/h |
100(8.56% of rate input flow) |
|
36 |
Material |
|
Compression gas contact part is by SS304 |
|
37 |
Installation |
|
Outdoor, pre skid before EXW, seller install necessary heat trace element |
